The Machine-Made Marvel: Crafting Perfect Cable Chains with Precision Engineering

The cable chain. It’s an icon of jewelry design – timeless, versatile, and deceptively simple. Its smooth, interlocking links create a fluid, supple rope-like effect that drapes beautifully. While handcrafting cable chains is an art form, producing them consistently and efficiently, especially in volume, requires the specialized capabilities of a chain making machine. If you're considering manufacturing cable chains or simply fascinated by the process, understanding how these machines transform wire into elegant chains is key. Let’s dive into the intricate world of machine-made cable chains.


Beyond the Handmade: Why Machines Rule for Cable Chains

Creating a single, perfect cable link by hand requires significant skill. Now imagine repeating that exactly hundreds or thousands of times, ensuring each link is identical in size, shape, and orientation, and then linking them all flawlessly. The challenge for consistent, high-volume production is immense. This is where chain making machines shine:

  1. Unmatched Consistency: Machines eliminate human variation. Every link is formed with identical dimensions, curvature, and spring tension. This consistency is critical for the chain's smooth drape and professional finish.

  2. Blazing Speed: Modern chain machines operate at astonishing speeds, producing meters of chain per minute. This throughput is simply unattainable by hand for commercial production.

  3. Precision Engineering: The complex forming and linking process is handled with micron-level precision by specialized tooling and mechanical movements.

  4. Cost-Effectiveness: While the initial machine investment is significant, the labor cost per unit plummets compared to hand fabrication, making cable chains accessible to a wider market.

  5. Material Efficiency: Machines are optimized to minimize wire waste during forming and cutting.


The Wire: Where It All Begins

The journey starts with the raw material: wire. This isn't just any wire; it's typically precious metal wire (sterling silver, gold, platinum) or base metal wire (brass, copper, stainless steel) precisely drawn to the required diameter for the desired chain size.

  • Diameter Matters: The wire gauge directly determines the thickness of the final chain links and the overall weight and feel.

  • Material Properties: The wire must have the right balance of ductility (to be formed without breaking) and springiness (to hold its shape after forming). It's usually supplied in a "half-hard" temper – soft enough to form but resilient enough for chain integrity.

  • Annealing (Sometimes): For very fine wires or certain alloys, the wire might need annealing (controlled heating and cooling) before feeding into the machine to soften it and prevent breakage during forming.

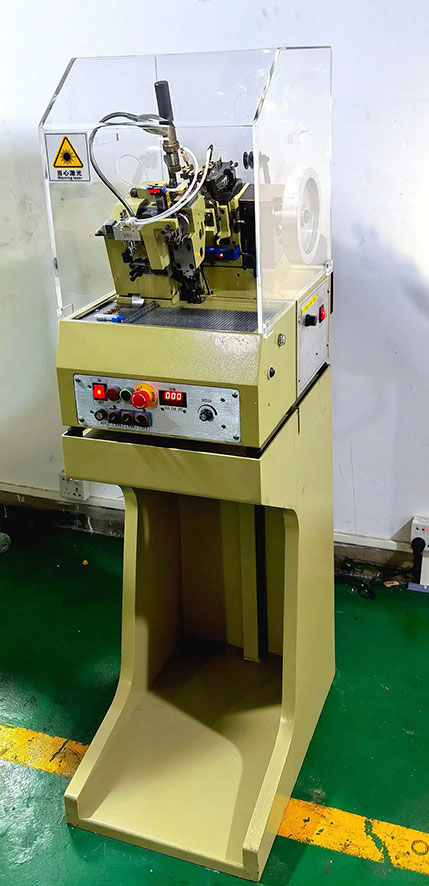

Inside the Machine: The Symphony of Formation

While specific designs vary, the core process for cable chain formation follows a sophisticated sequence:

  1. Feeding: A long coil or spool of wire is fed into the machine at a controlled, consistent rate. Precision feed rollers grip the wire and advance it accurately.

  2. Straightening (Crucial!): Wire naturally has a curve from being coiled. Before forming links, it must be perfectly straightened. The machine uses a series of strategically placed rollers or straightening dies to remove any bends or kinks. This step is absolutely vital for forming uniform, non-twisted links.

  3. Link Forming - The Heart of the Process: This is where the magic happens. The straightened wire is fed into a complex forming assembly:

    • Bending: The wire is bent around precision mandrels or forming pins to create the characteristic oval or slightly rounded rectangular shape of a cable link. Think of it like wrapping the wire around a tiny, moving anvil in a specific pattern.

    • Closing & Shaping: Specialized tooling (dies, hammers, or rollers) then closes the link, ensuring the ends meet cleanly and precisely. Simultaneously, it imparts the final desired shape and curvature to the link. This shaping defines the chain's "tightness" and fluidity.

  4. Linking (The Ingenious Part): This is what separates cable chain machines from simple link-forming machines. As each new link is formed, it is simultaneously interlinked with the previous link in the growing chain.

    • The newly formed link is mechanically manipulated to pass through the open center of the preceding link before the preceding link is fully closed and hardened into its final shape.

    • This requires incredibly precise timing and coordination between the forming tools for the new link and the position/hold of the previous link. It's a mechanical ballet happening hundreds of times per minute.

  5. Cutting Off: Once the link is formed and linked, a cutting tool (often a small, sharp blade or shear) cleanly severs the wire from the continuous feed, separating the finished link and completing its integration into the chain. The cut end becomes the starting point for forming the next link.

  6. Chain Take-Up: The steadily growing chain is gently pulled away from the forming area by a take-up mechanism (rollers or a spool) at a synchronized speed, ensuring consistent tension and preventing kinking.


The Invisible Factor: Tooling

The unsung heroes of chain making are the forming tools and dies. These are custom-machined, hardened steel components that directly shape the wire. Their design is paramount:

  • Link Shape & Size: The mandrels and dies dictate the exact inner diameter, outer diameter, thickness, and curvature of each link.

  • Link Orientation: Tooling ensures each link is perfectly oriented relative to its neighbors for smooth articulation.

  • Surface Finish: Highly polished tooling creates smoother links with less friction, requiring less finishing later.

  • Durability: Made from hardened tool steel, they withstand immense pressure and abrasion but require periodic maintenance and replacement.


Springback: The Metal's Memory

A critical phenomenon machinists must account for is springback. When metal is bent, it tries to spring back slightly towards its original shape after the forming pressure is released. The machine's tooling is designed to over-bend the link slightly, anticipating this springback, so that when the metal relaxes, it lands precisely in the desired final shape. Getting this compensation right is essential for dimensional accuracy.



Beyond the Machine: Finishing Touches

The chain emerging from the machine is a continuous strand of perfectly formed and linked cable chain, but it's not quite finished:

  1. Annealing: The rapid forming work-hardens the metal, making it stiff. The entire chain is usually annealed in a controlled oven to soften it, restoring malleability and drape.

  2. Pickling: Annealing causes oxidation (scale). The chain is immersed in a mild acid bath (pickle) to remove this scale, revealing clean, bright metal.

  3. Tumbling/Polishing: The chain undergoes various stages of tumbling:

    • Pre-Polish Tumble: With abrasive media (like steel shot or ceramic cones) and compound to remove burrs, smooth surfaces, and begin polishing. This also work-hardens the surface slightly.

    • High-Shine Polish Tumble: With very fine media (like walnut shells or plastic pellets) and polishing rouge to achieve the desired final luster (bright, satin, matte).

  4. Cutting to Length: The continuous chain is cut into specific lengths (e.g., 16", 18", 20" for necklaces).

  5. Adding Findings: Clasps and jump rings are soldered or mechanically attached to the ends.

  6. Final QC: Rigorous inspection for link uniformity, closure integrity, smoothness, polish, and clasp function.


Why Choose Chain Making Machine for Cable Chains?

For manufacturers and consumers alike, machine production offers compelling advantages:

  • Affordability: Mass production brings down the cost, making beautiful cable chains accessible.

  • Availability: Consistent production ensures reliable supply.

  • Durability & Consistency: Machine precision creates strong, uniform links that wear evenly and perform reliably.

  • Variety: Machines can produce a vast range of sizes, from ultra-delicate chains to bold statement pieces, all with the same core quality.

  • for example, by changing the molds ,can be made curb chain also .
