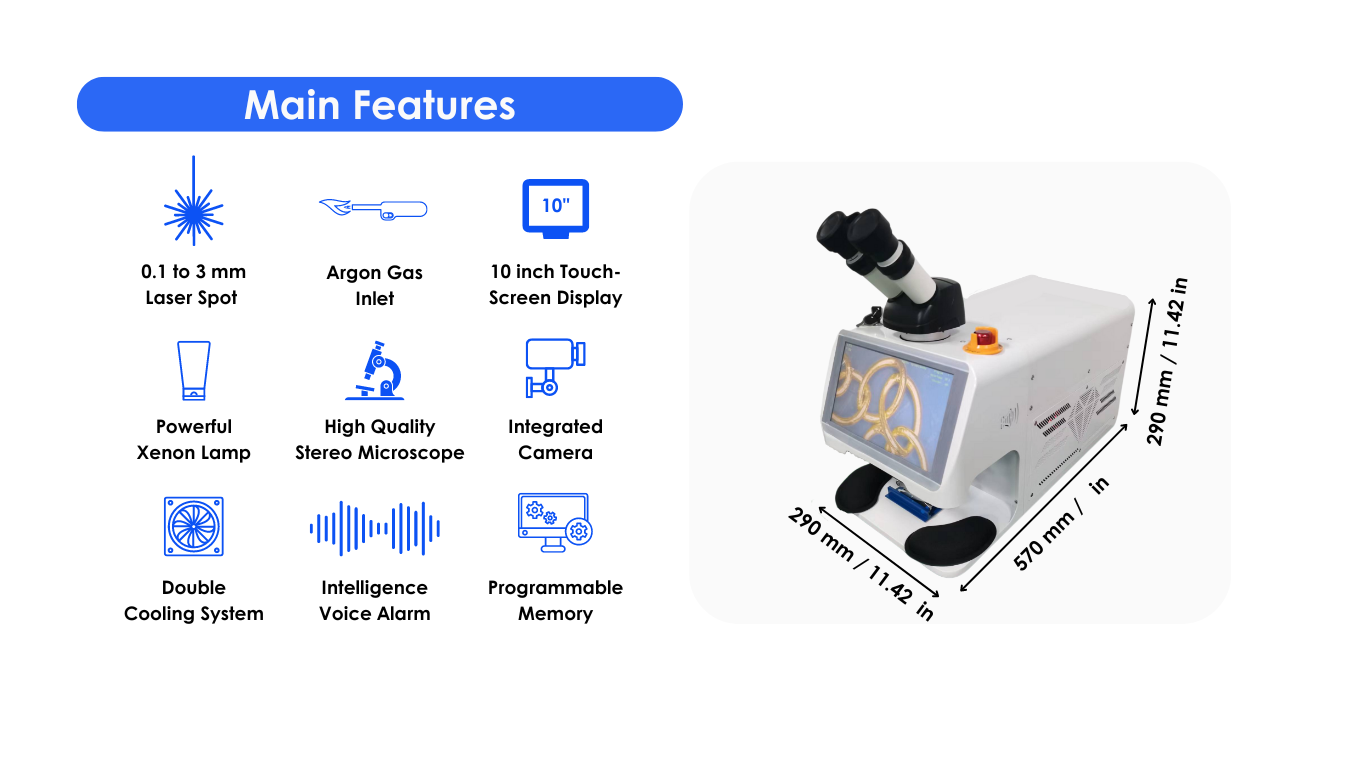

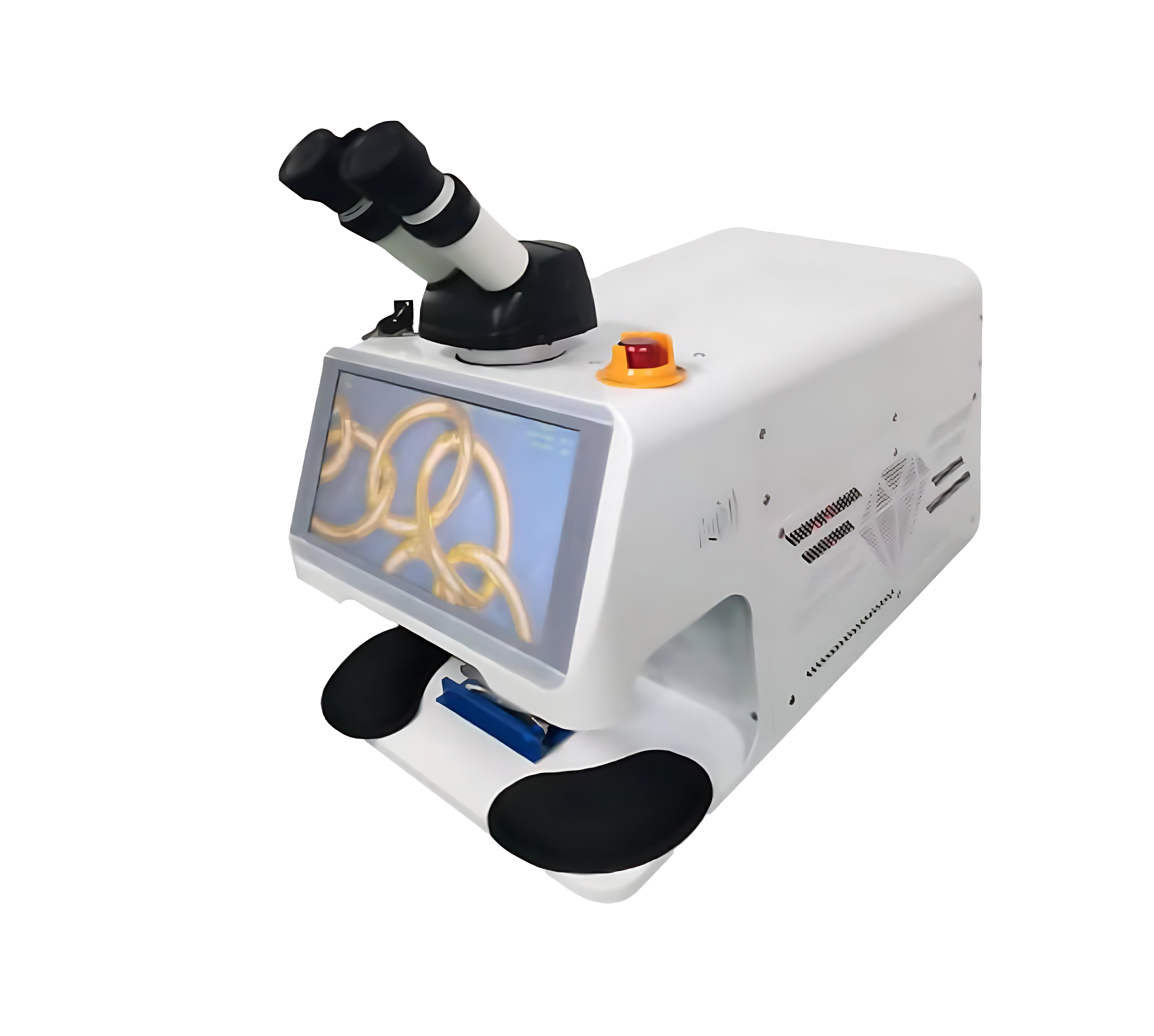

Mini 10 Laser Welding Machine

Configuration(* Can be adjusted according toactual needs)

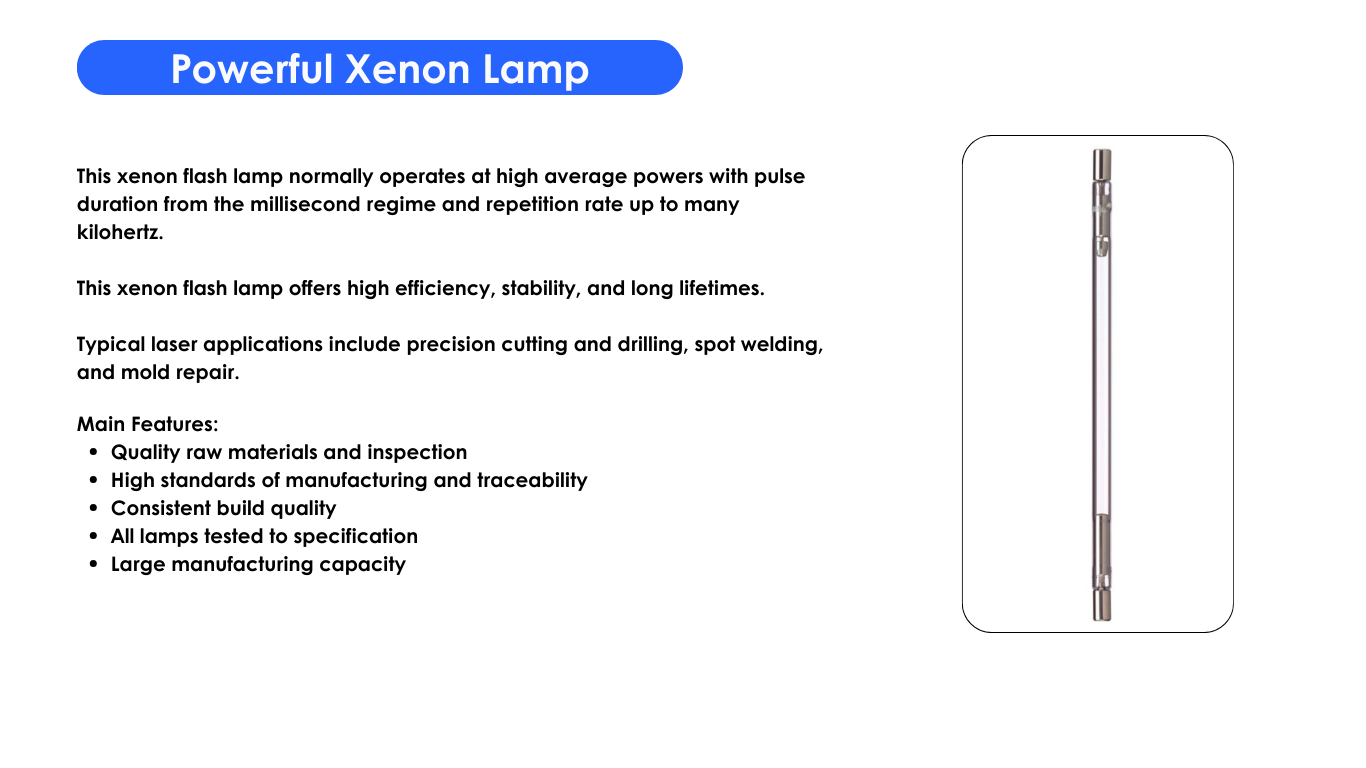

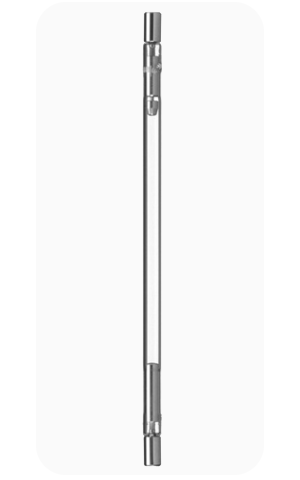

Powerful Xenon Lamp

This xenon flash lamp normally operates at high average powers with pulseduration from the millisecond regime and repetition rate up to manykilohertz.This xenon flash lamp offers high efficiency, stability, and long lifetimes

Typical laser applications include precision cutting and drilling, spot weldingand mold repair.

Main Features:

· Quality raw materials and inspection
· High standards of manufacturing and traceability
· Consistent build quality
· All lamps tested to specification
· Large manufacturing capacity

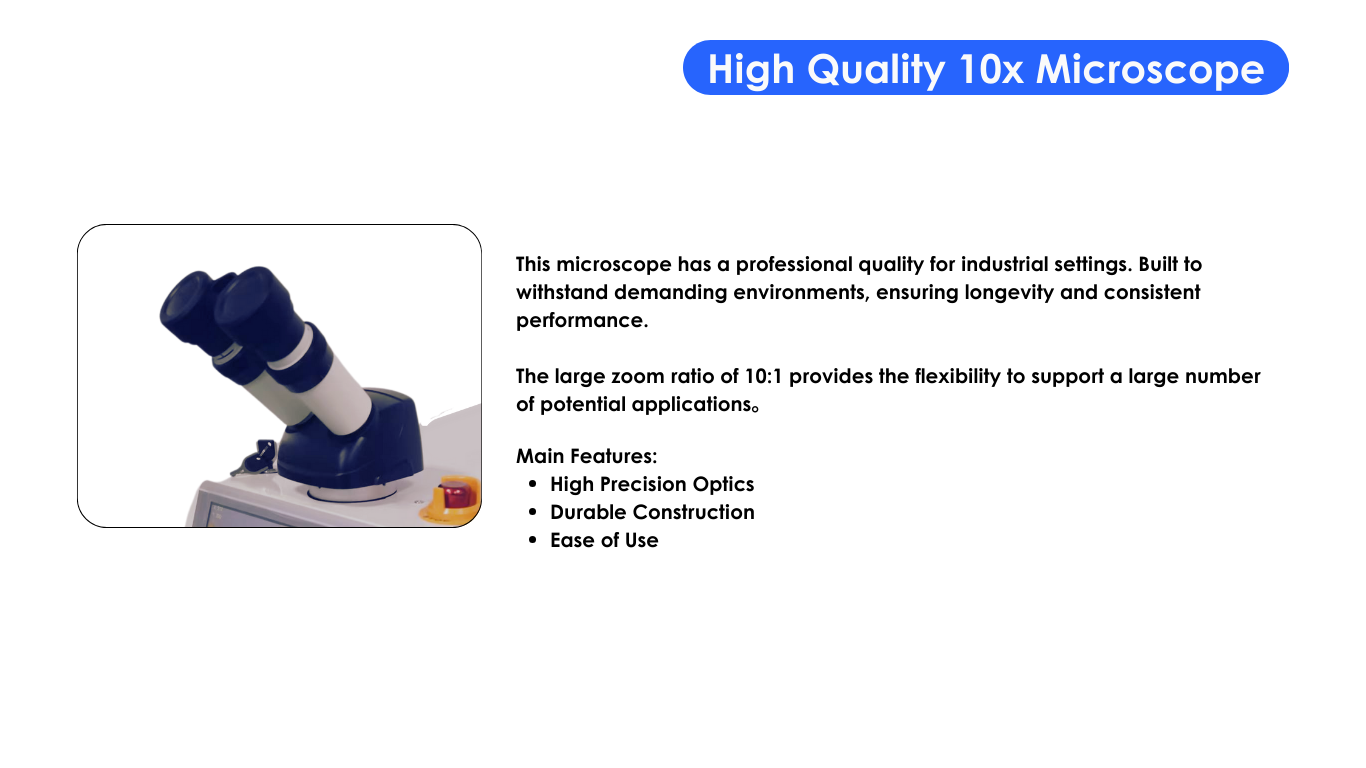

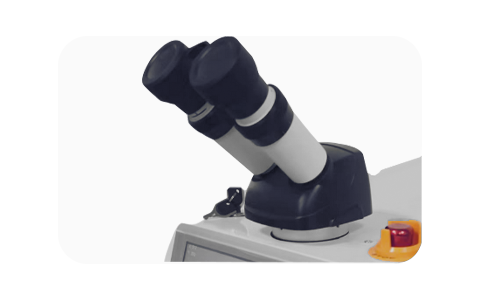

High Quality 10x Microscope

This microscope has a professional quality for industrial settings. Built towithstand demanding environments, ensuring longevity and consistentperformance.

The large zoom ratio of 10:1 provides the flexibility to support a large numberof potential applications.

Main Features:

· High Precision Optics
· Durable Construction
· Ease of Use

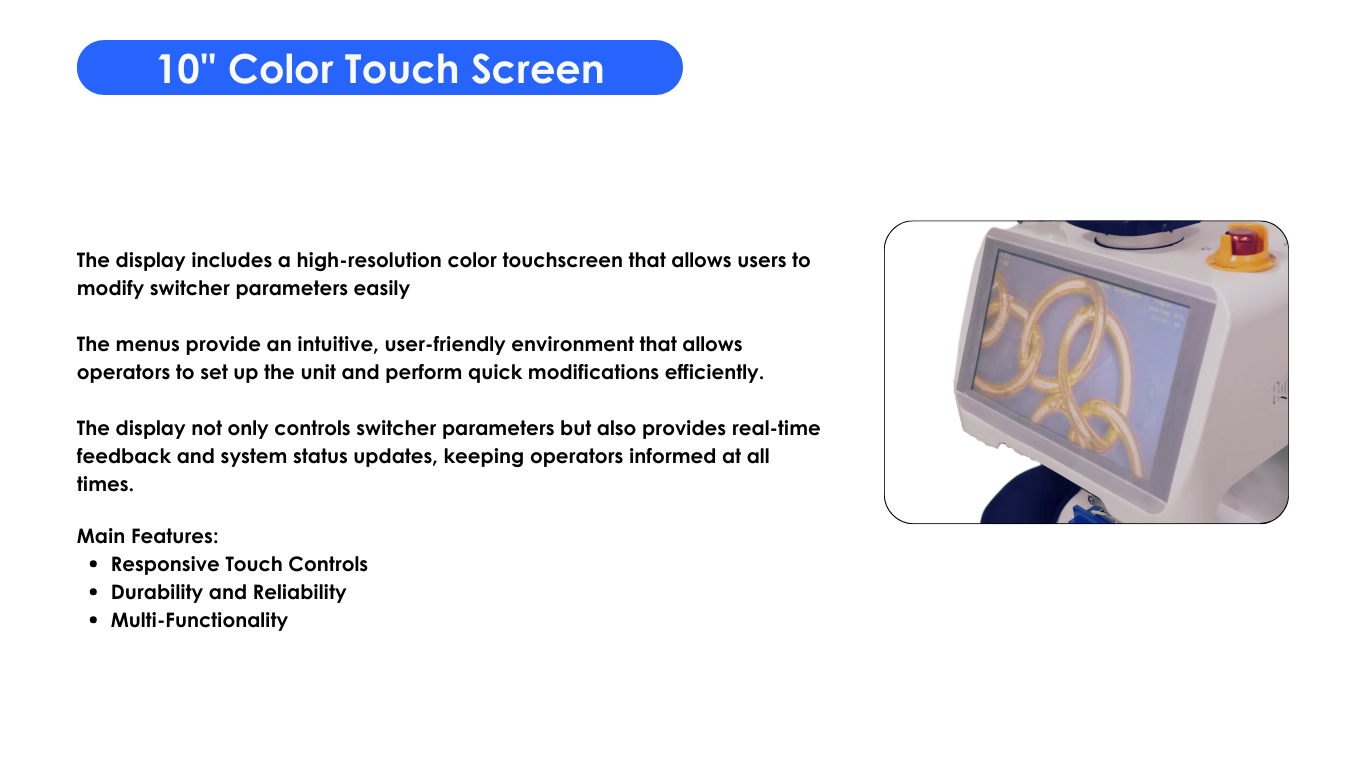

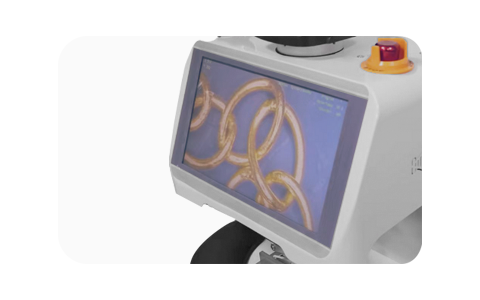

10" Color Touch Screen

The display includes a high-resolution color touchscreen that allows users tomodify switcher parameters easily
The menus provide an intuitive, user-friendly environment that allowsoperators to set up the unit and perform quick modifications efficiently
The display not only controls switcher parameters but also provides real-timefeedback and system status updates, keeping operators informed at alltimes.

Main Features:

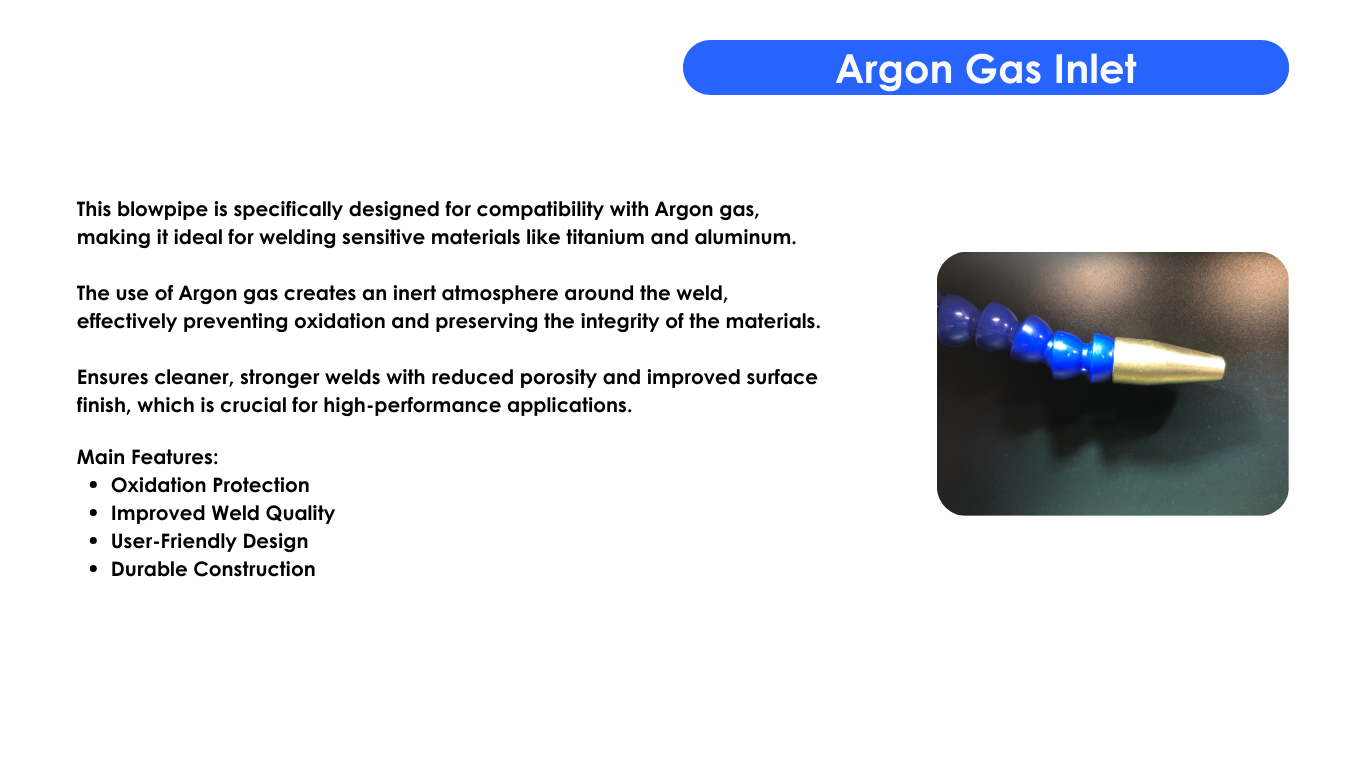

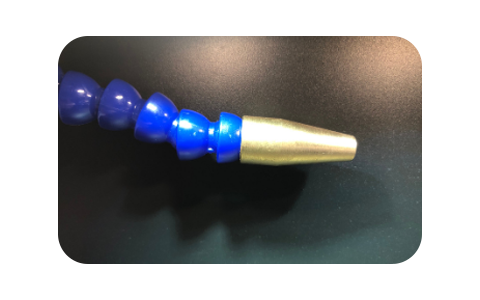

This blowpipe is specifically designed for compatibility with Argon gas,making it ideal for welding sensitive materials like titanium and aluminum.

Main Features:

· Oxidation Protection

· improved Weld Quality

· Durable Construction

· User-Friendly Design

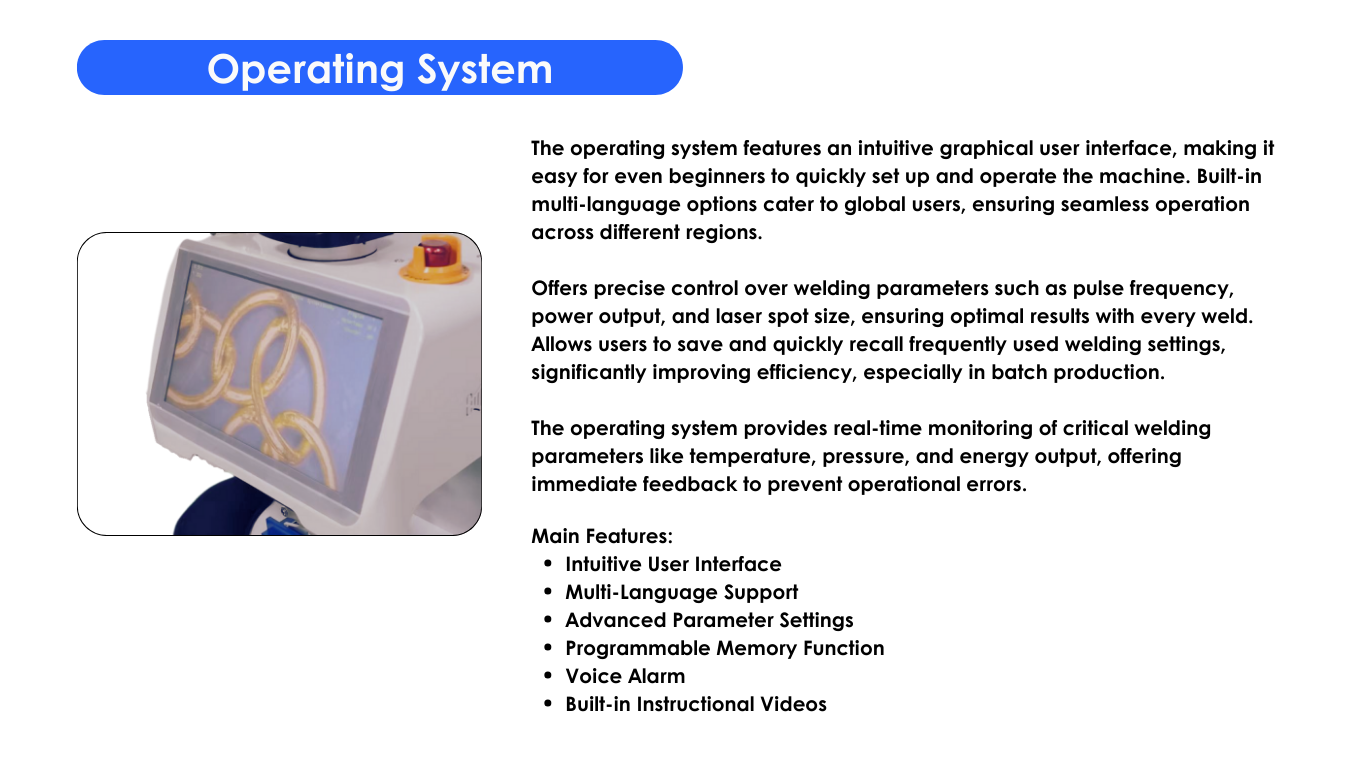

Operating System

The operating system provides real-time monitoring of critical weldingparameters like temperature, pressure, and energy output, offeringimmediate feedback to prevent operational errors.

Main Features:
· Intuitive User Interface
· Multi-Language Support
· Advanced Parameter Settings
· Programmable Memory Function
· Voice Alarm
· eBuilt-in Instructional Videos

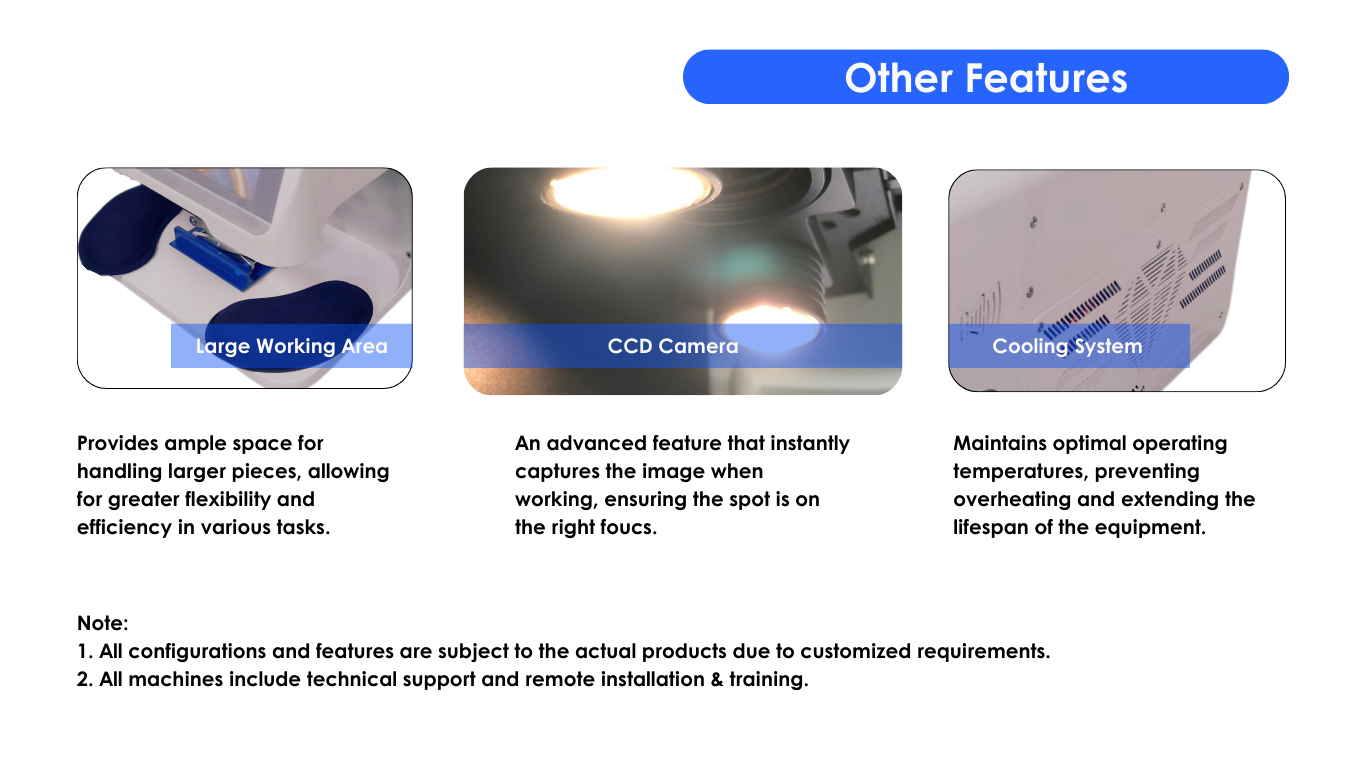

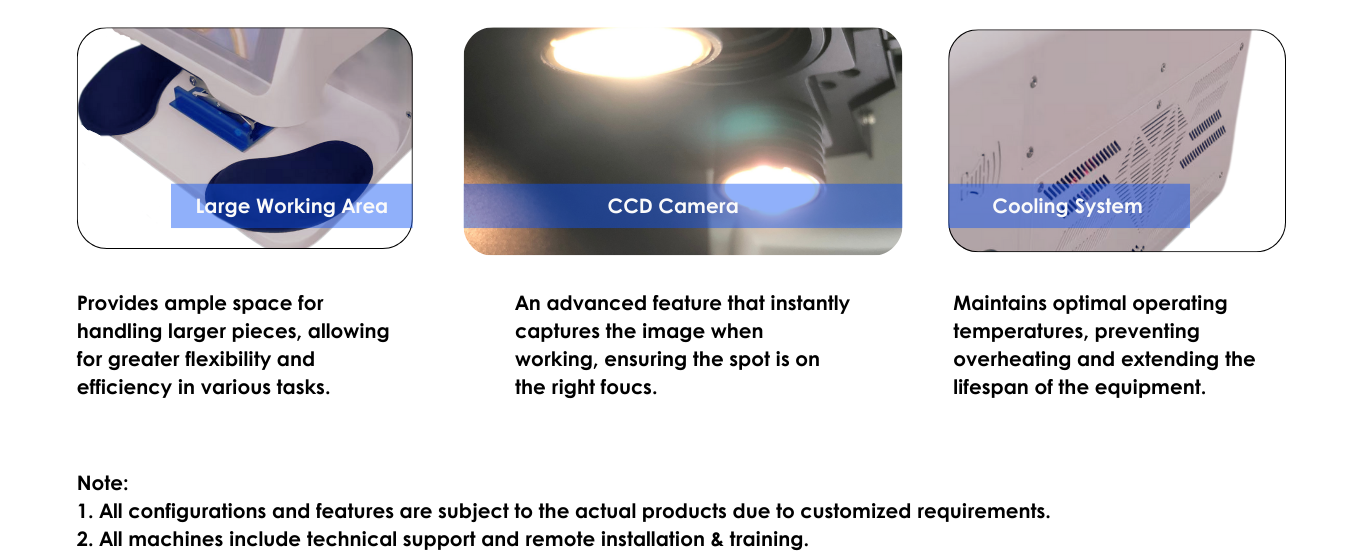

Other Features

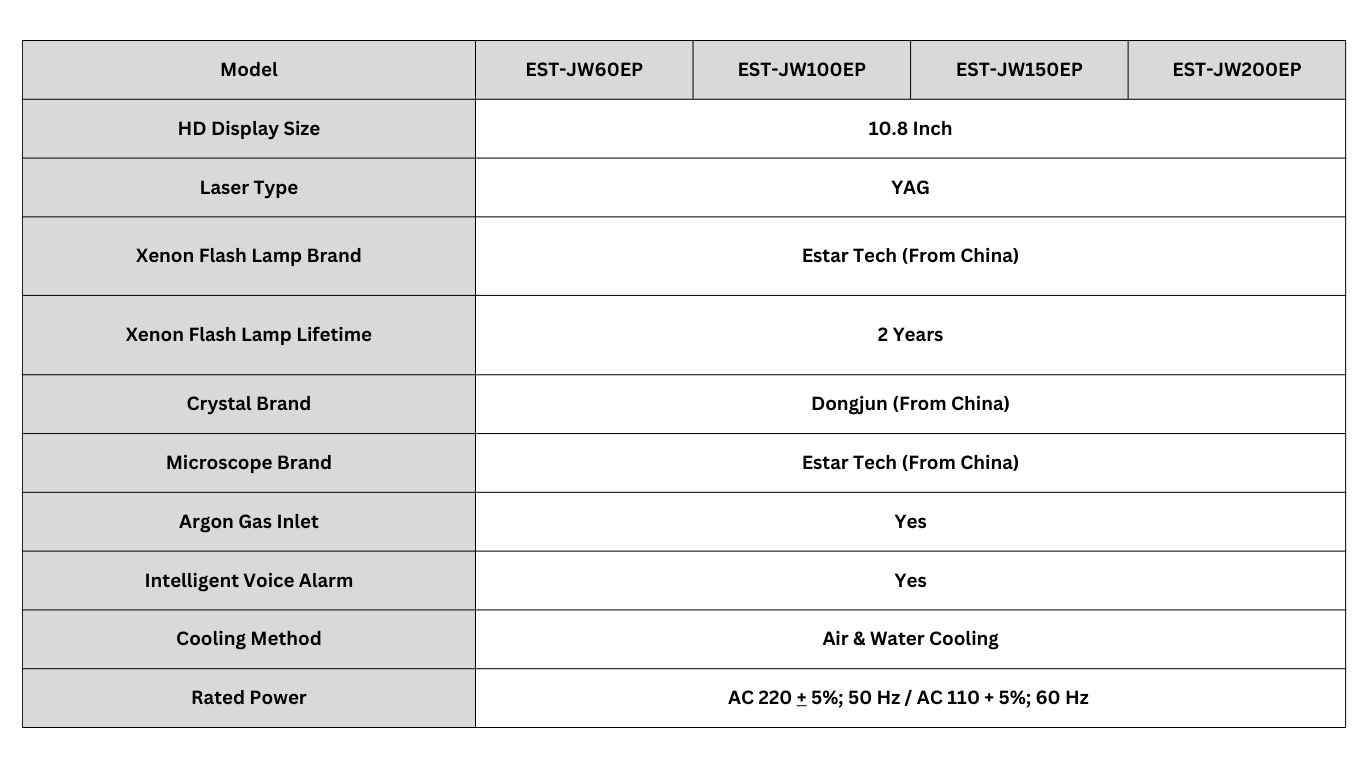

Parameters(* Differences in configuration)

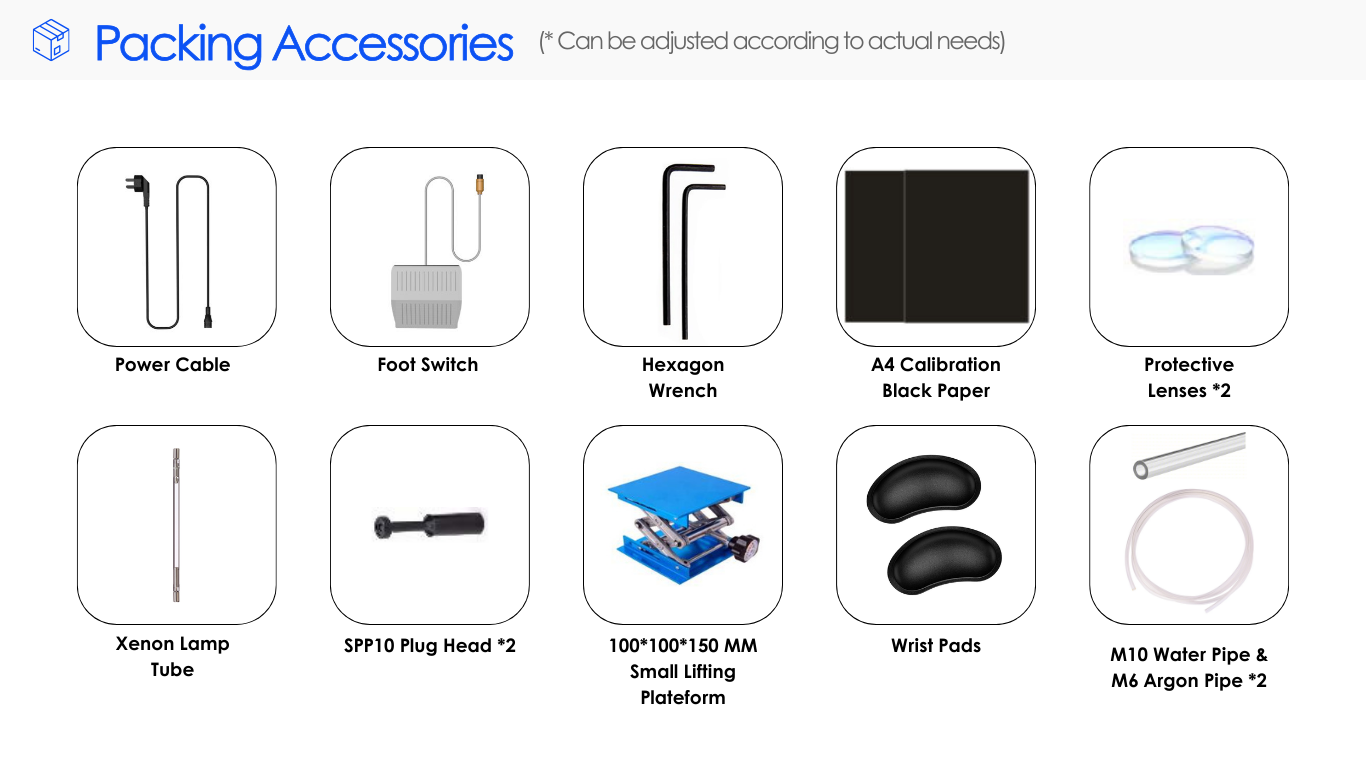

Packing Accessories

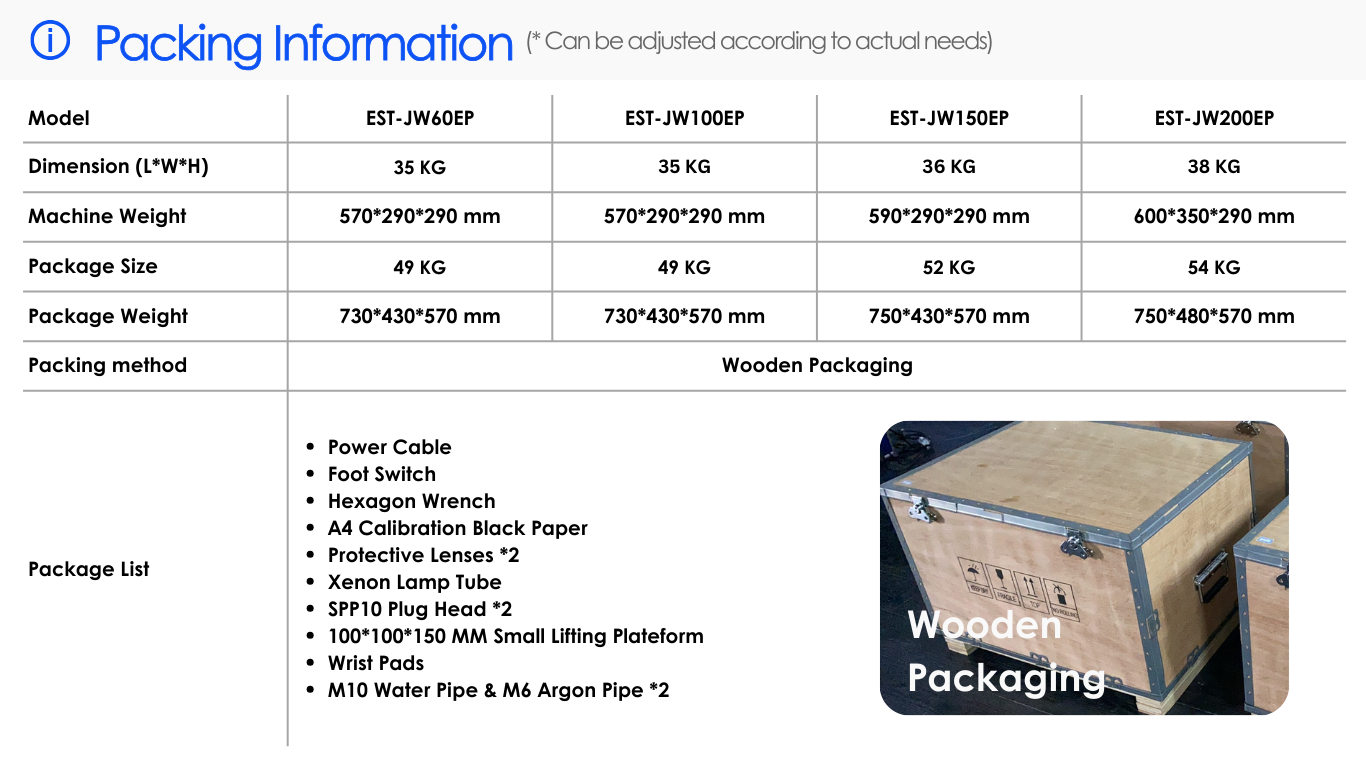

Packing Information

Model	EST-JW60EP	EST-JW100EP	EST-JW150EP	EST-JW200EP
Machine Weight	35 KG		36 KG	38 KG
Dimension (L*W*H)	570*290*290 mm		590*290*290 mm	600*350*290 mm
Package Weight	49 KG		52 KG	54 KG
Package Size	730*430*570 mm	730*430*570 mm	750*430*570 mm	750*480*570 mm

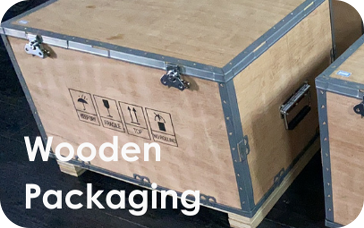

Packing method	Wooden Packaging

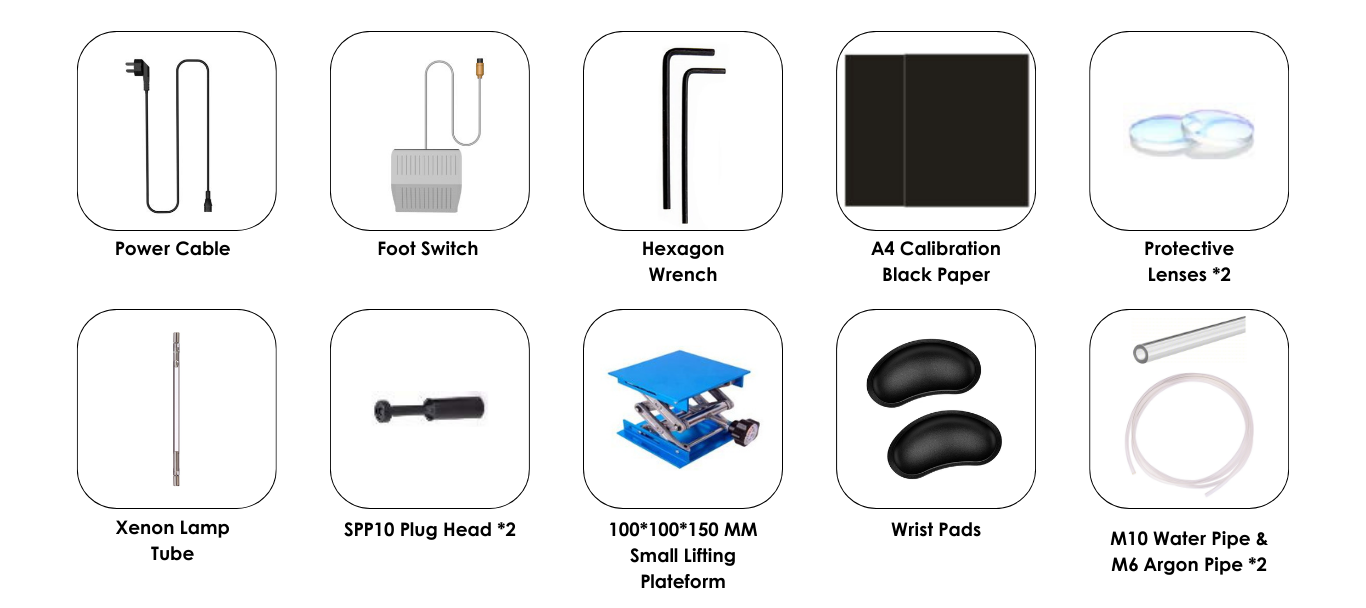

Package List	· Power Cable · Foot Switch · Hexagon Wrench · A4 Calibration Black Paper · Protective Lenses *2 · Xenon Lamp Tube · SPP10 Plug Head *2 · 100*100*150 MM Small Lifting Plateform · Wrist Pads · M10 Water Pipe & M6 Argon Pipe *2

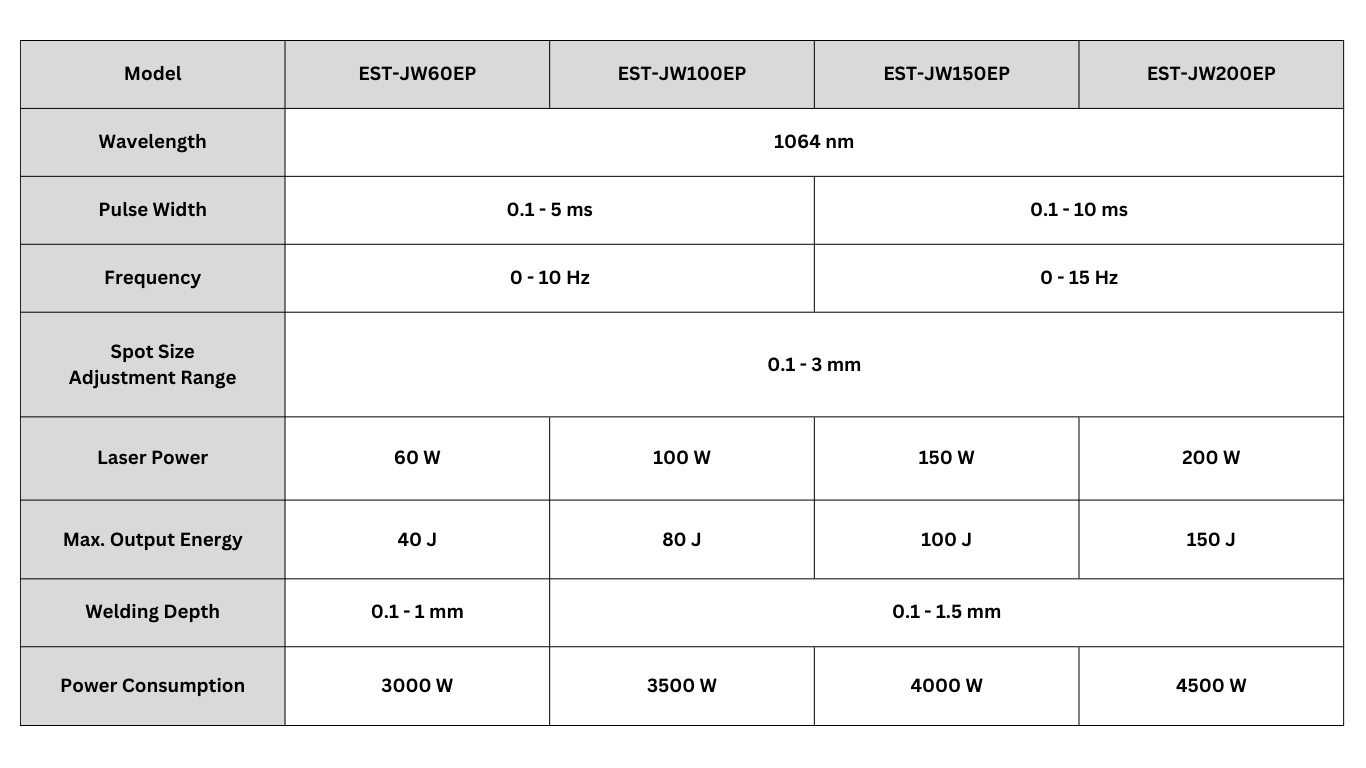

Model	EST-JW60EP	EST-JW100EP	EST-JW150EP	EST-JW200EP
Wavelength	1064 nm
Pulse Width	0.1-5 ms		0.1-10 ms
Frequency	0 -10 Hz		0 -15 Hz
Spot Size Adjustment Range	0.1-3 mm
Laser Power	60W	100W	150W	200W
Max. Output Energy	40J	80J	100J	150J
Welding Depth	0.1 - 1.0 mm	0.1 - 1.5 mm
Power Consumption	3000W	3500W	4000W	4500W
