Chain Welding Machine

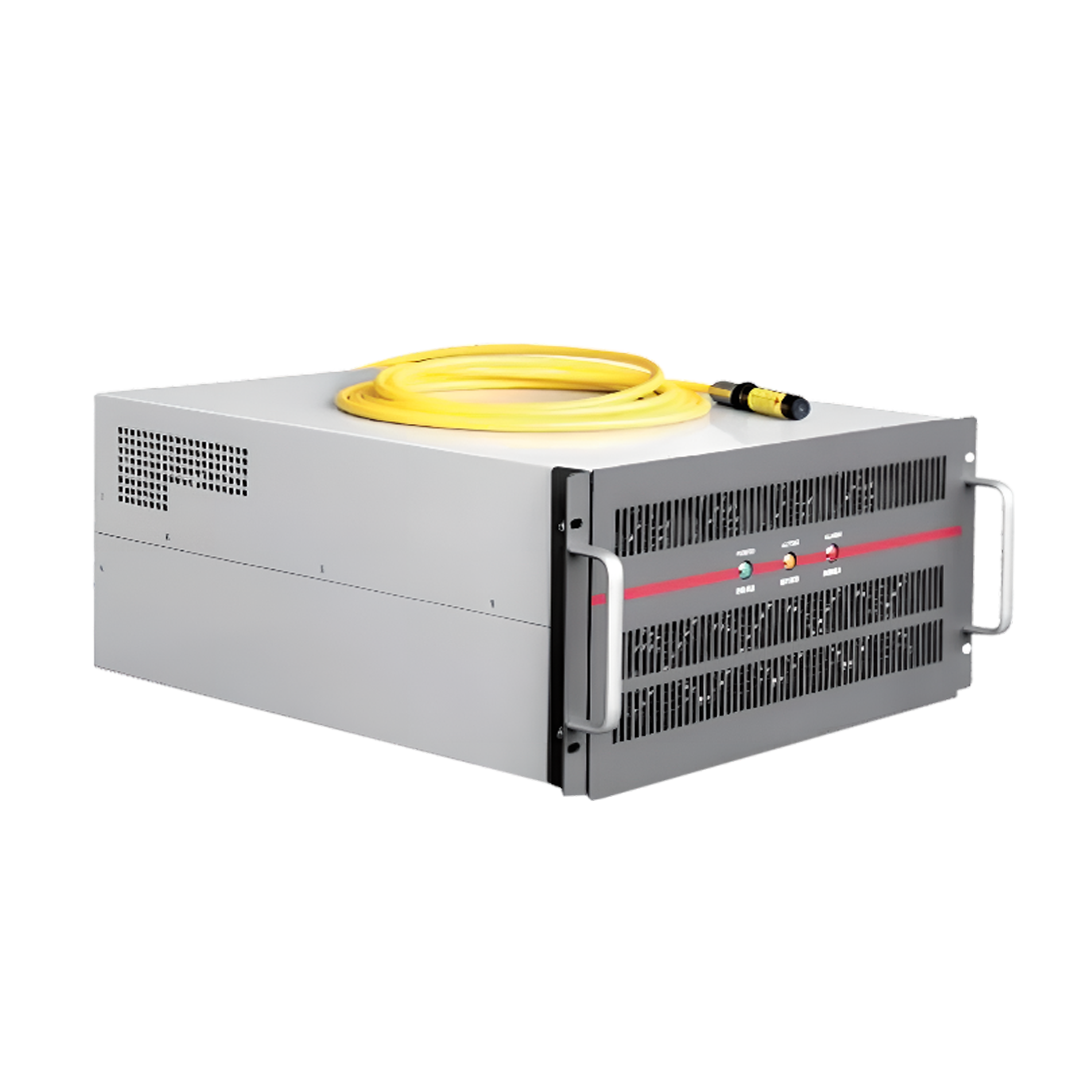

QCW-300W Chain Welding Machine
Photogallery
Information
Product content

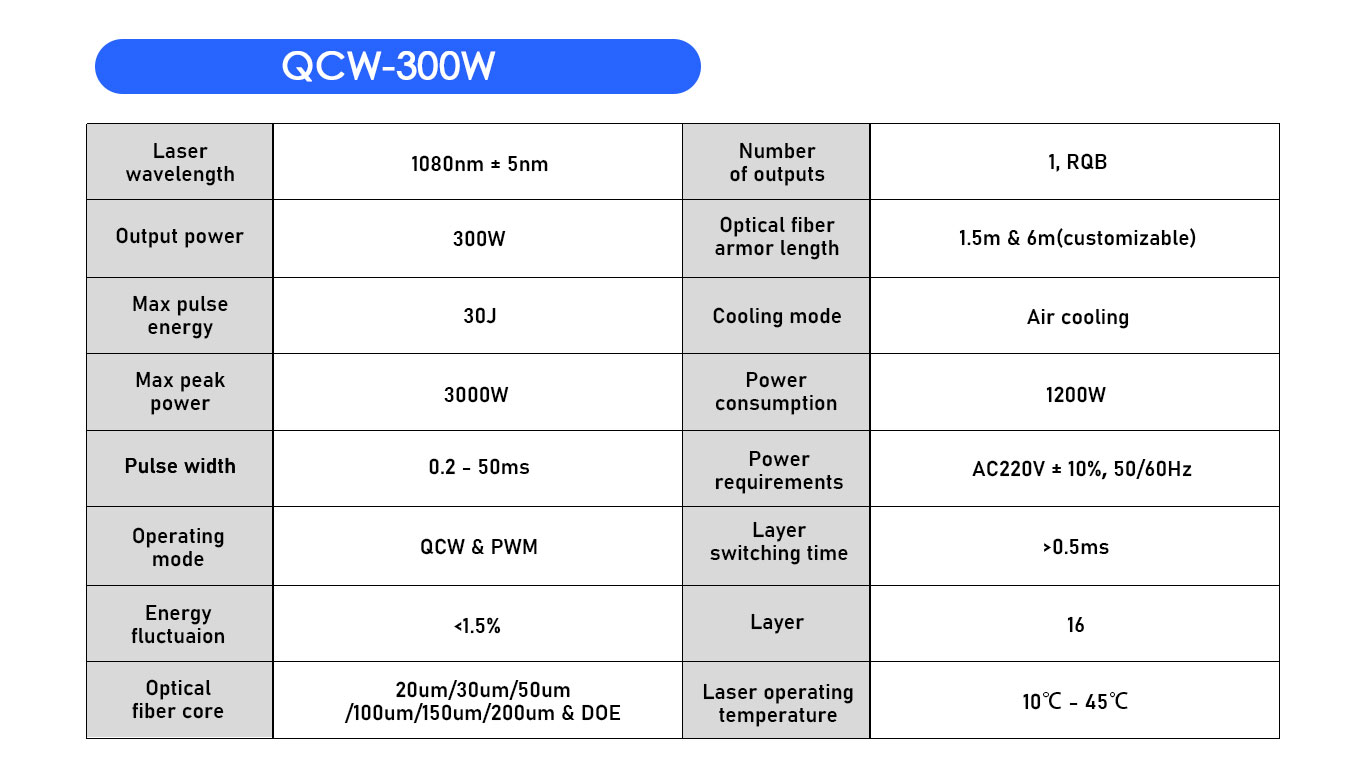

Parameters(* Differences in configuration)
|
Laser wavelength |
1080nm±5nm |
Numberof outputs |
1, RQB |
|
Output power |
300W |
Optical fiber armor length |
1.5m & 6m (customizable) |
|
Max pulse energy |
30 J |
Cooling mode |
Air cooling |
|
Max peak power |
3000W |
Power consumption |
1200W |
|
Pulse width |
0.2 - 50 ms |
Power requirements |
AC220V+10%,50/60Hz |
|
Operating mode |
QCW & PWM |
Layer switching time |
>0.5ms |
|
Energy flucation |
<1.5% |
Layer |
16 |
|
Optical fiber core |
20um/30um/50um/100um/150um/200um & DOE |
Laser operating temperature |
10℃-45℃ |
