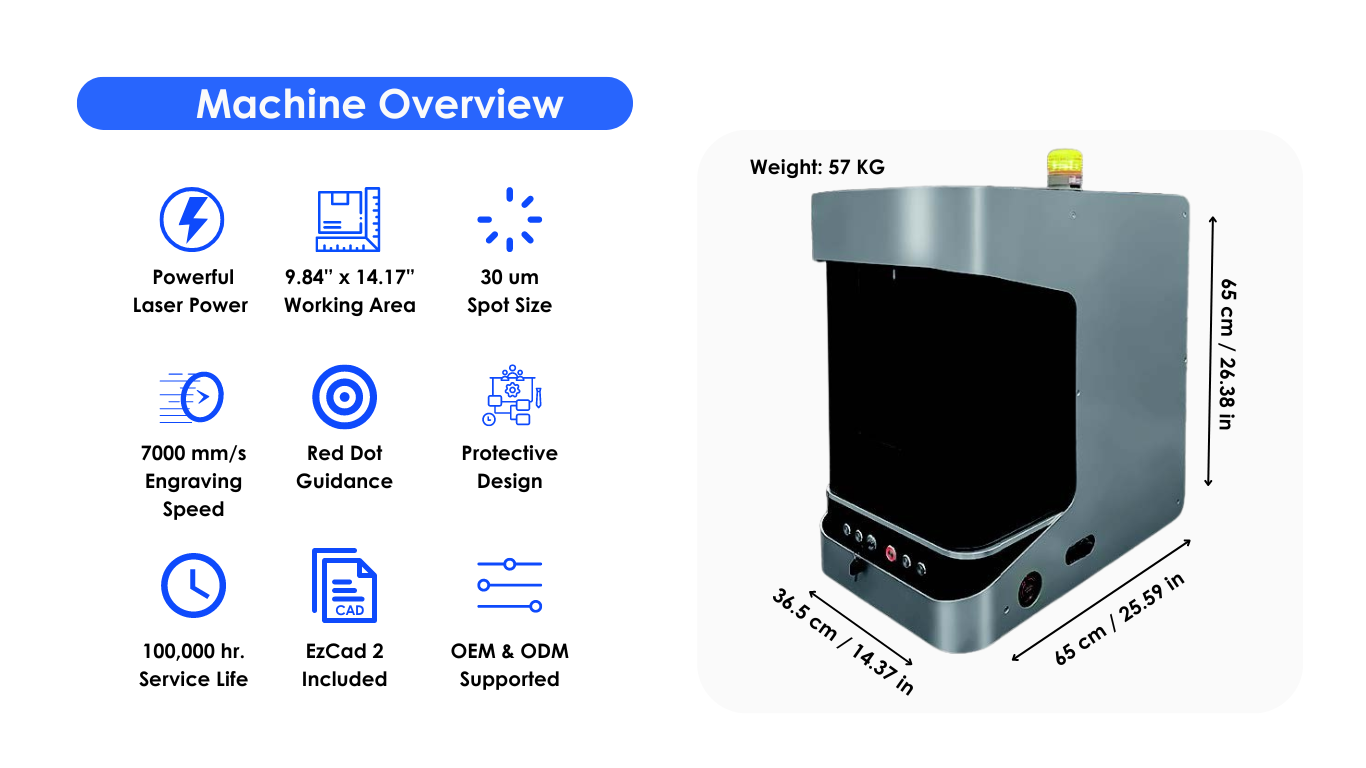

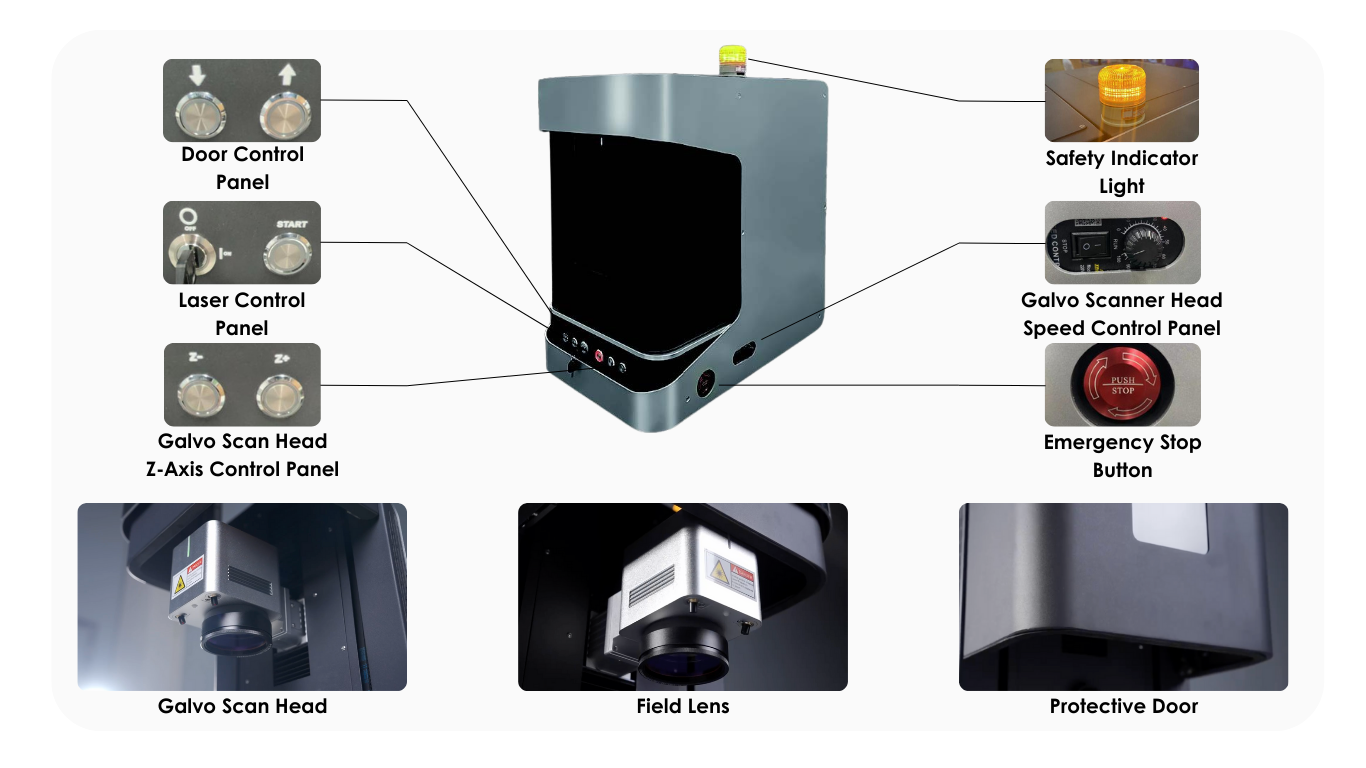

Configuration(* Can be adjusted according toactual needs)

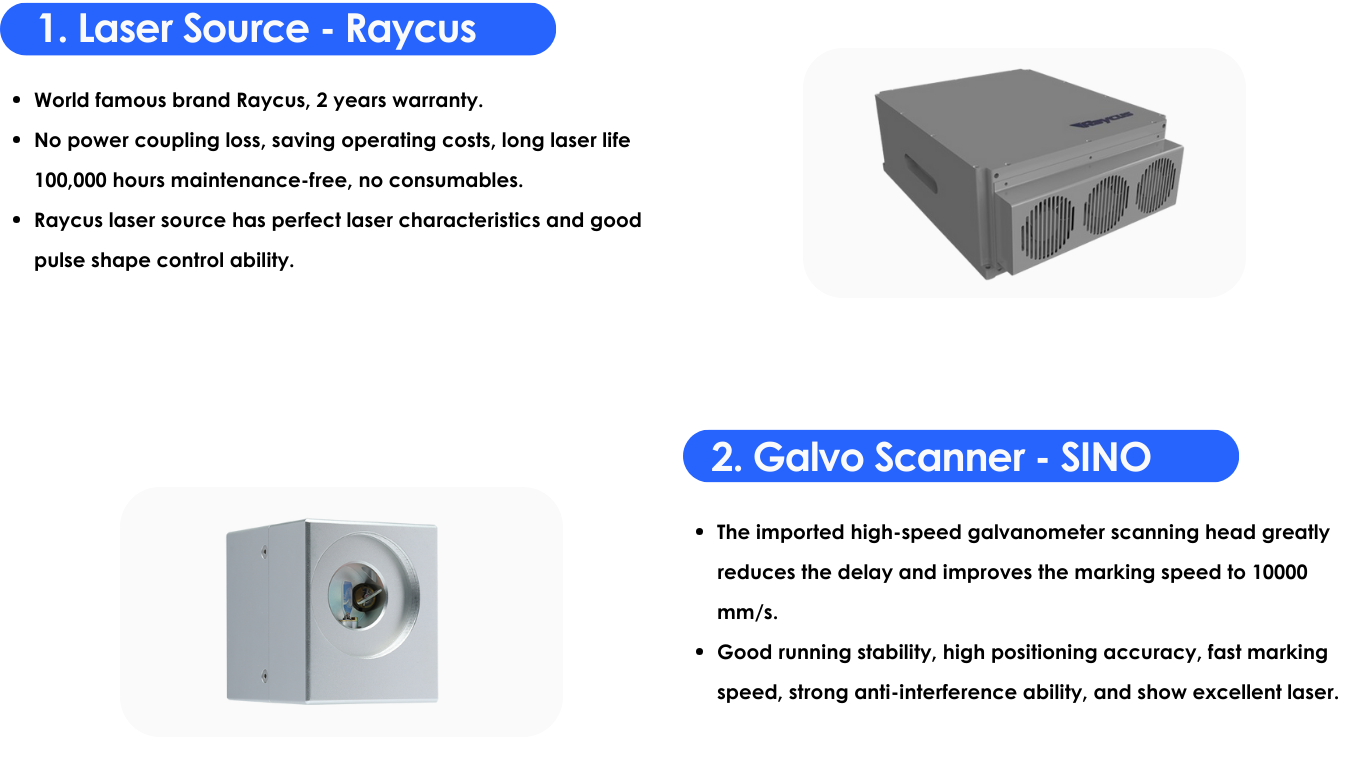

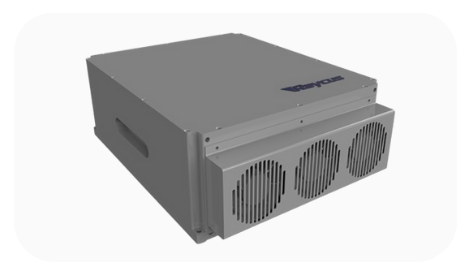

1.Laser Source -Raycus

· World famous brand Raycus, 2 years warranty.

· No power coupling loss, saving operating costs, long laser life100,000 hours maintenance-free, no consumables.

· Raycus laser source has perfect laser characteristics and goodpulse shape control ability.

2.Calvo Scanner- SlNO

· The imported high-speed galvanometer scanning head greatly reduces the delay and improves the marking speed to 10000mm/s.

· Good running stability, high positioning accuracy, fast markingspeed, strong anti-interference ability, and show excellent laser.

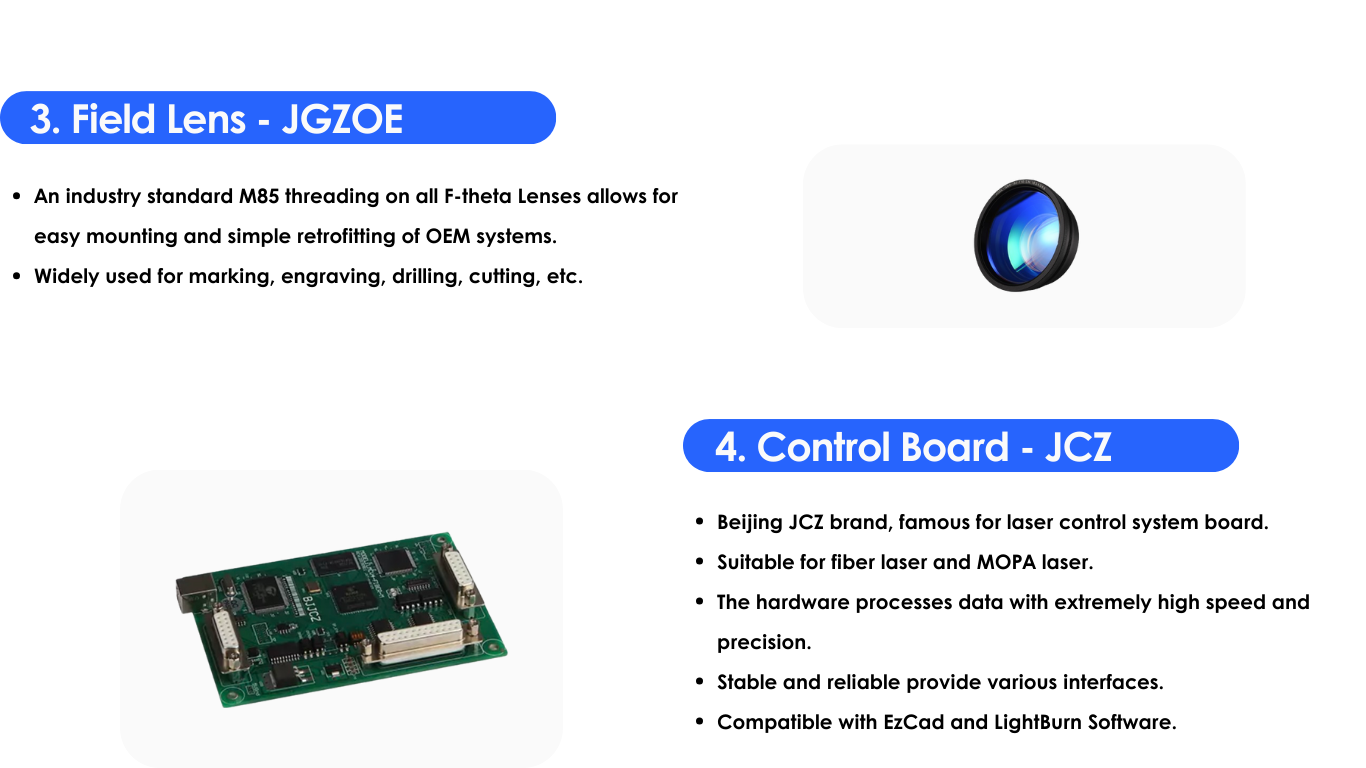

3. Field lens -JCZOE

· An industry standard M85 threading on all F-theta Lenses allows for easy mounting and simple retrofitting of OEM systems.

· Widely used for marking, engraving, drilling, cutting, etc.

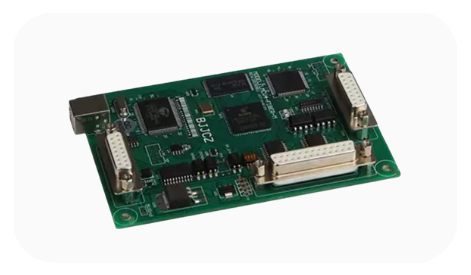

4. Control Board -JCZ

· Beijing JCZ brand, famous for laser control system board

· Suitable for fiber laser and MOPA laser.

· The hardware processes data with extremely high speed and precision.

· Stable and reliable provide various interfacessumables.

· Compatible with EzCad and LightBurn Software.

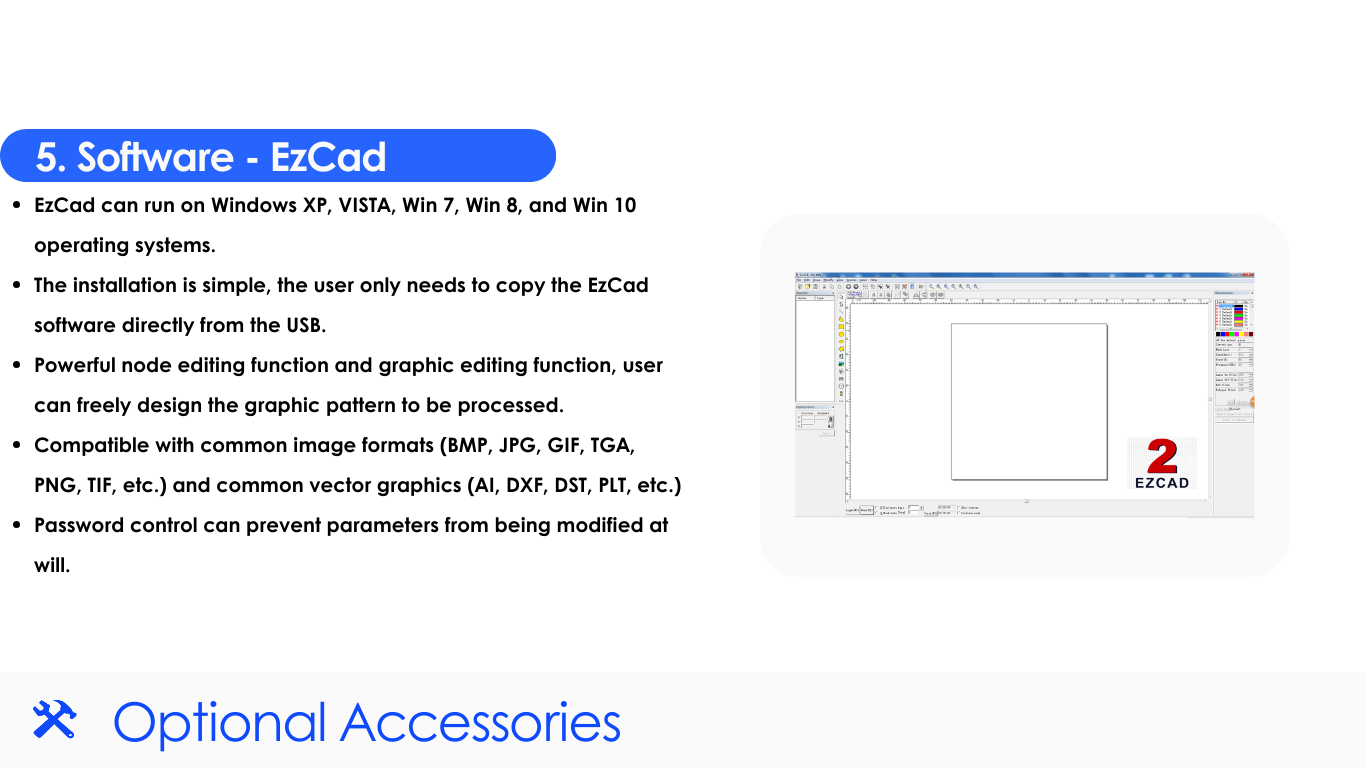

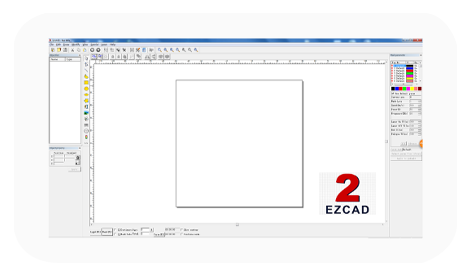

5.Software -EzCad

· EzCad can run on Windows XP, VISTA, Win 7, Win 8. and Win 10operating systems.

· The installation is simple, the user only needs to copy the EzCadsoftware directly from the USB.

· Powerful node editing function and graphic editing function, useican freely design the graphic pattern to be processed.

· Compatible with common image formats (BMP, JPG, GIF, TGAPNG, TlF, etc.) and common vector graphics (Al, DXF, DST, PLT, etc.)

· Password control can prevent parameters from being modified at will

 Optional Accessories

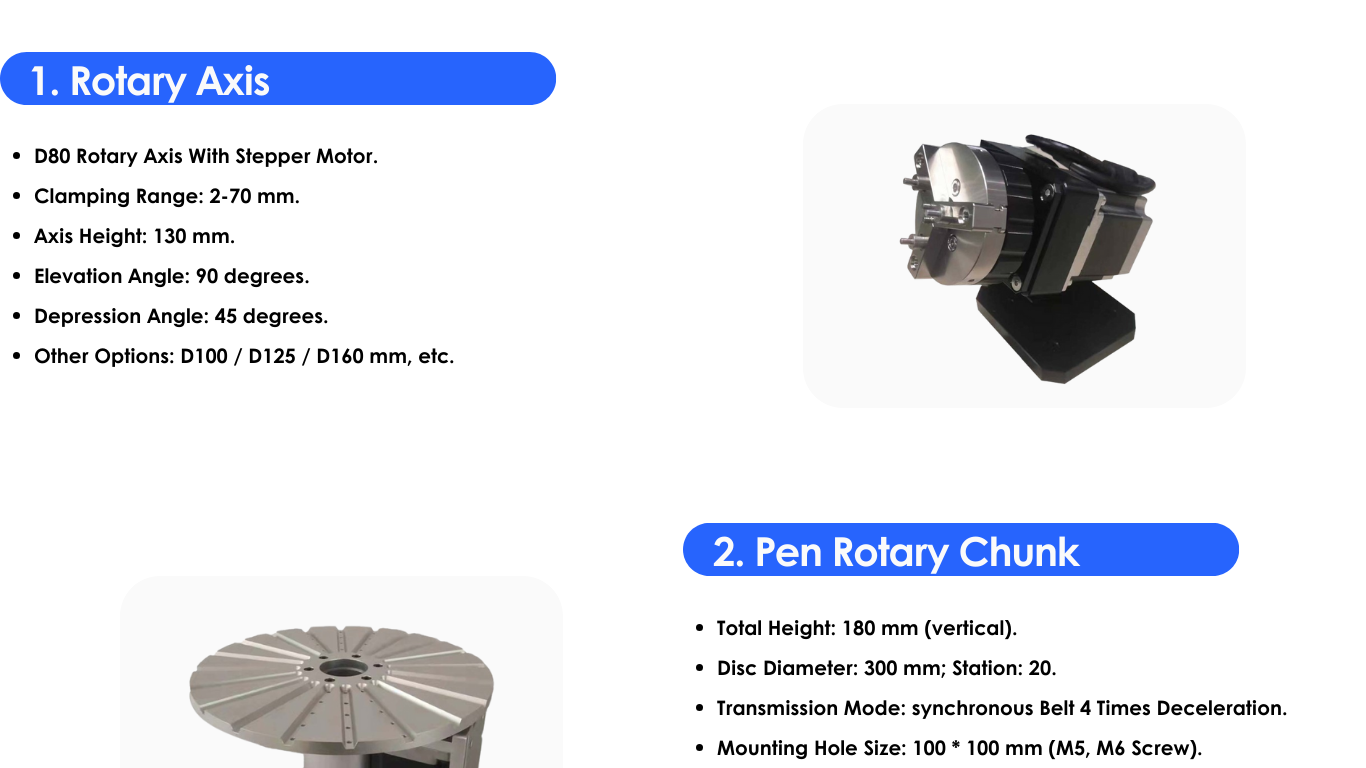

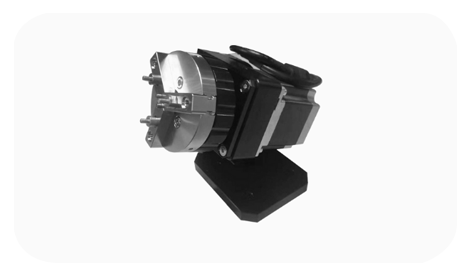

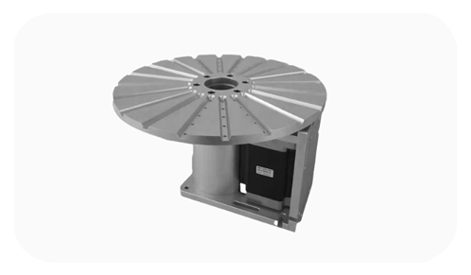

1. Rotary Axis

· D80 Rotary Axis With Stepper Motor.

· Clamping Range: 2-70 mm.

· Axis Height: 130 mm.

· Elevation Angle: 90 degrees.

· Depression Angle: 45 degrees.

· Other Options:D100/D125/D160 mm, etc.

· Total Height: 180 mm(vertical)

· Disc Diameter: 300 mm; Station: 20.

· Transmission Mode: synchronous Belt 4 Times Deceleration.

· Mounting Hole Size: 100 * 100 mm (M5, M6 Screw).

· Large Force, Through Hole, Anti Shaking.

· Be Worked With Laser Engraver.

· Be Used For Chopsticks, Pens & Long Objects

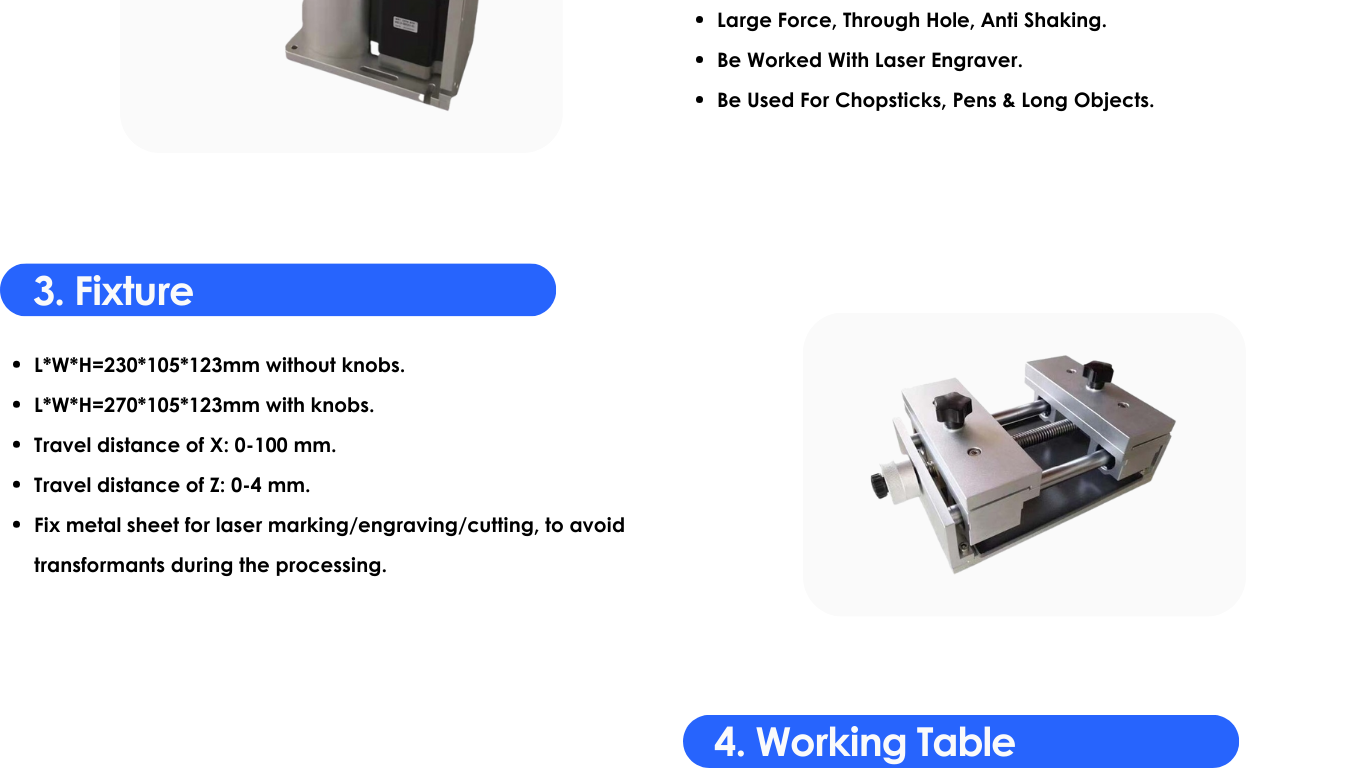

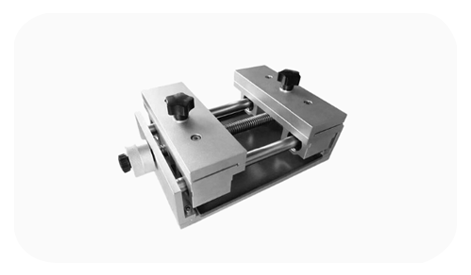

3. Fixture

· L*W*H=230*105*123mm without knobs.

· L*W*H=270*105*123mm with knobs.

· Travel distance of X:0-100 mm.

· Travel distance of Z: 0-4 mm.

· Fix metal sheet for laser marking/engraving/cutting, to avoid transformants during the processing.

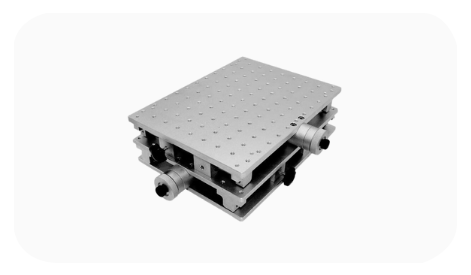

4. Working Table

· High-rigidity Aluminum Alloy.

· X-Y Travel: 150*90 mm.

· Located Hole: M6.

· Hole Pitch: 25 mm.

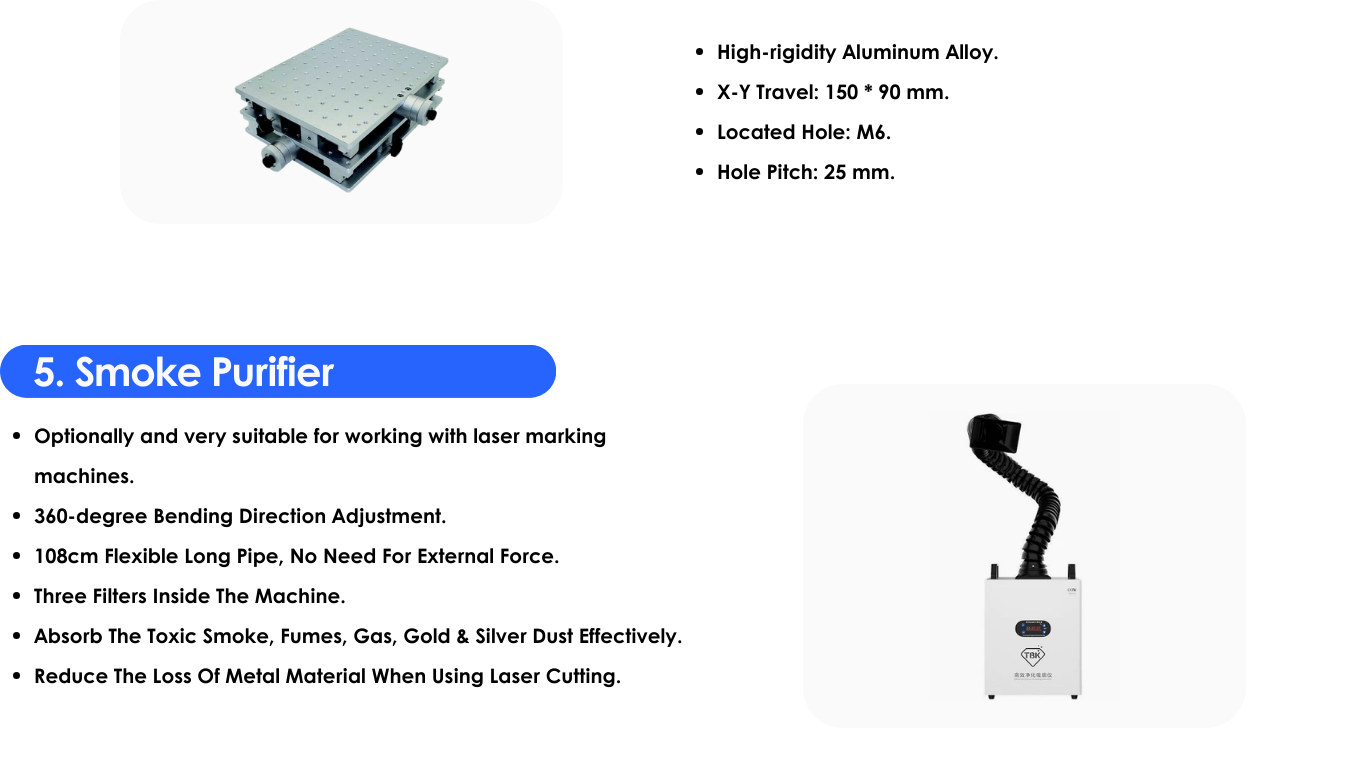

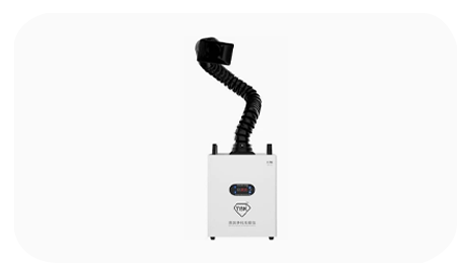

5. Smoke Purifier

· Optionally and very suitable for working with laser marking machines.

· 360-degree Bending Direction Adjustment.

· 108cm Flexible Long Pipe, No Need For External Force.

· Three Filters inside The Machine.

· Absorb The Toxic Smoke, Fumes, Gas, Gold & Silver Dust Effectively

· Reduce The Loss Of Metal Material When Using laser Cutting.

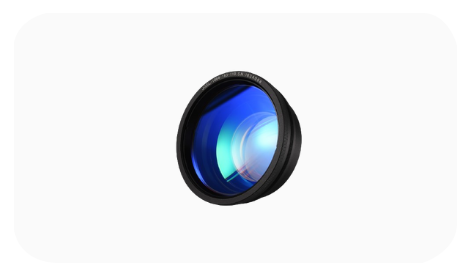

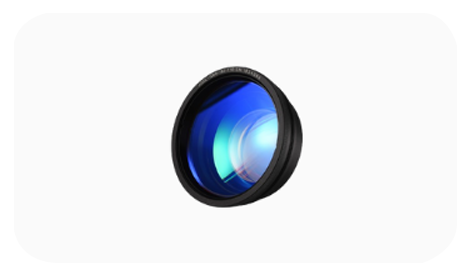

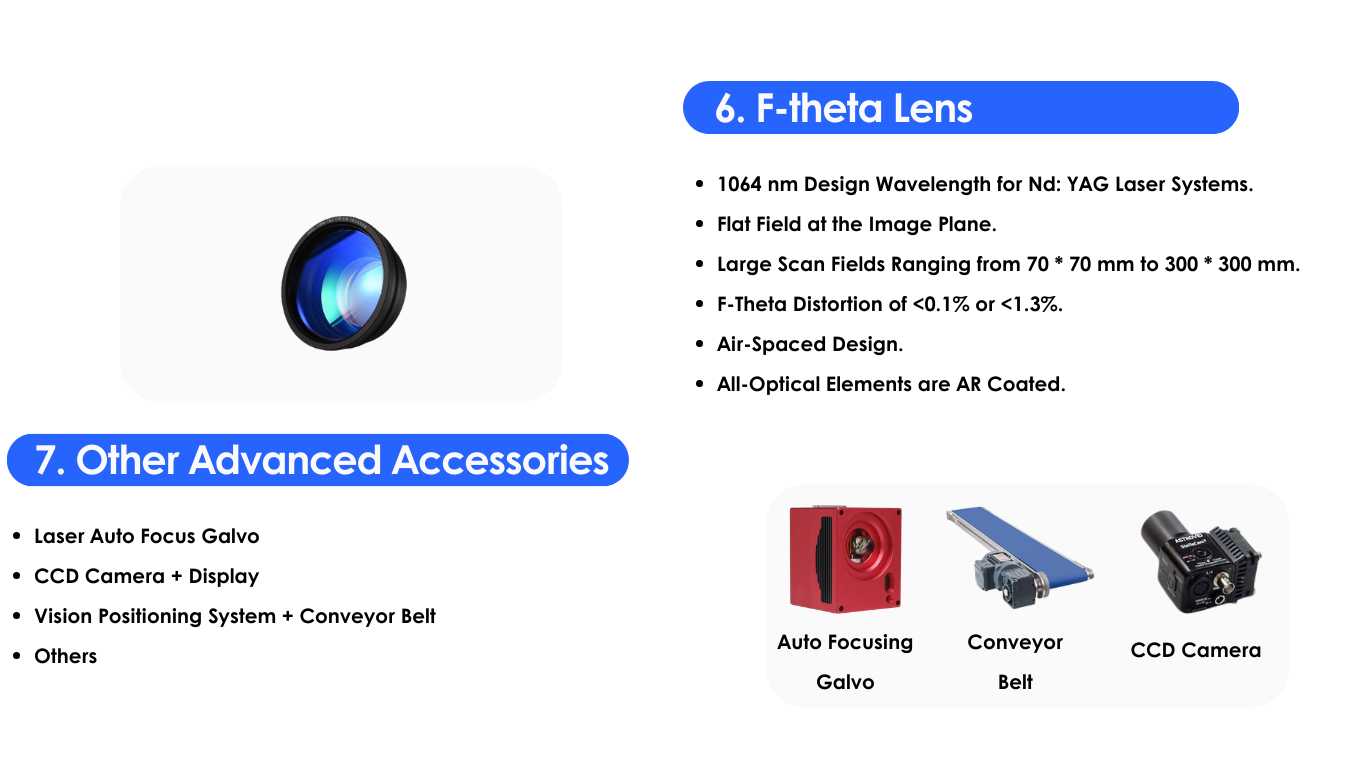

6. F-theta Lens

· 1064 nm Design Wavelength for Nd: YAG Laser Systems.

· Flat Field at the lmage Plane.

· Large Scan Fields Ranging from 70 * 70 mm to 300* 300 mm.

· F-Theta Distortion of <0.1% or <1.3%.

· Air-Spaced Design.

· All-Optical Elements are AR Coated.

7. Other Advanced Accessories

· Laser Auto Focus Galvo

· CCD Camera + Display

· Vision Positioning System + Conveyor Belt

· Others

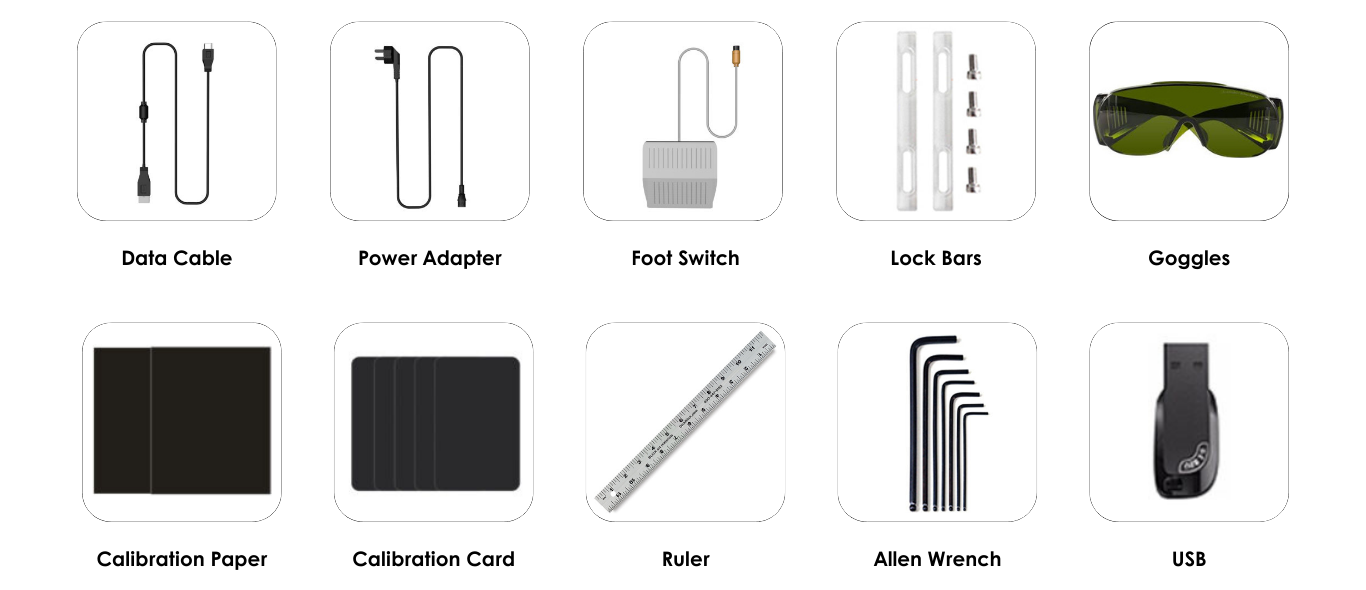

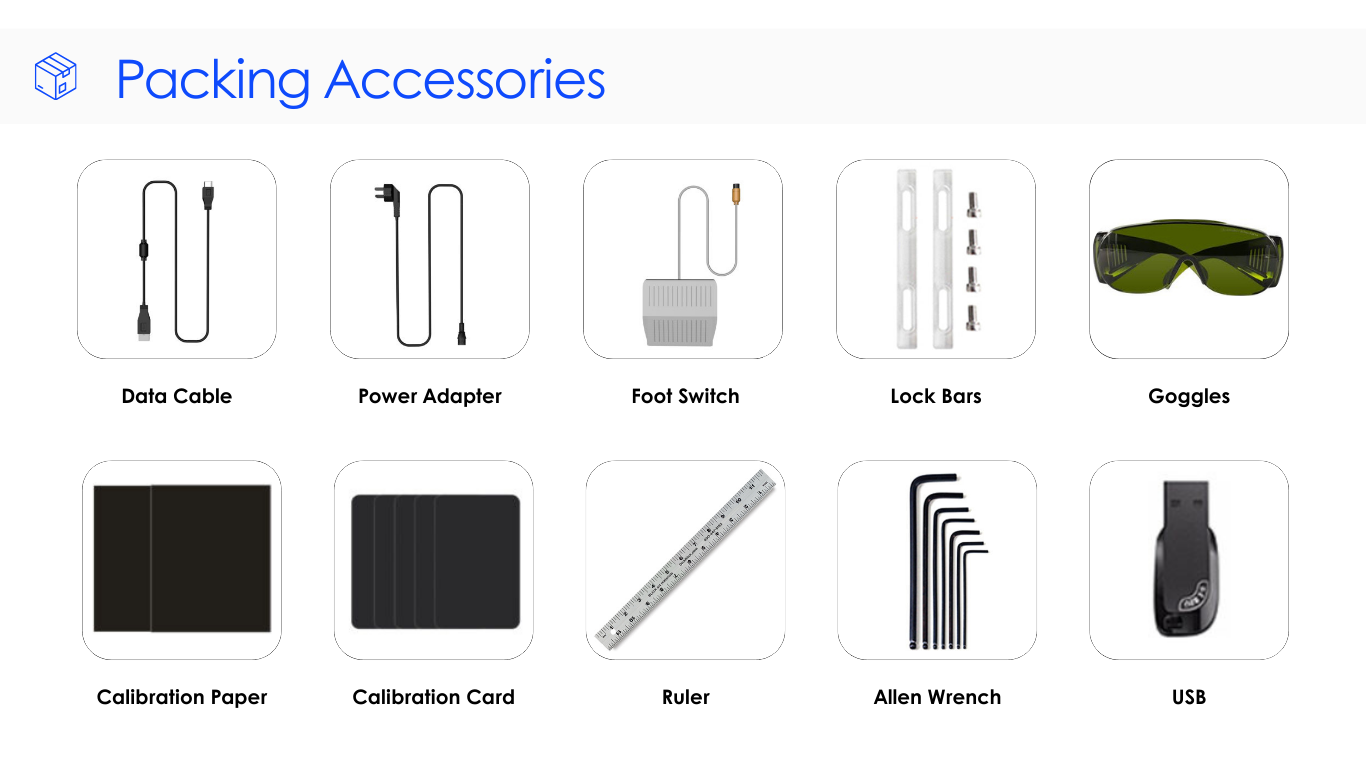

Packing Accessories

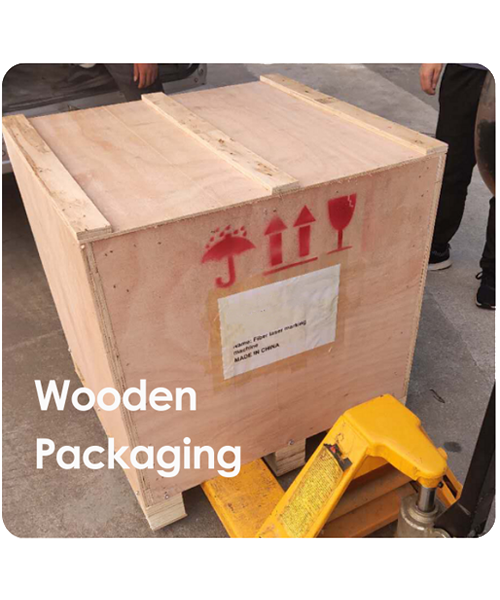

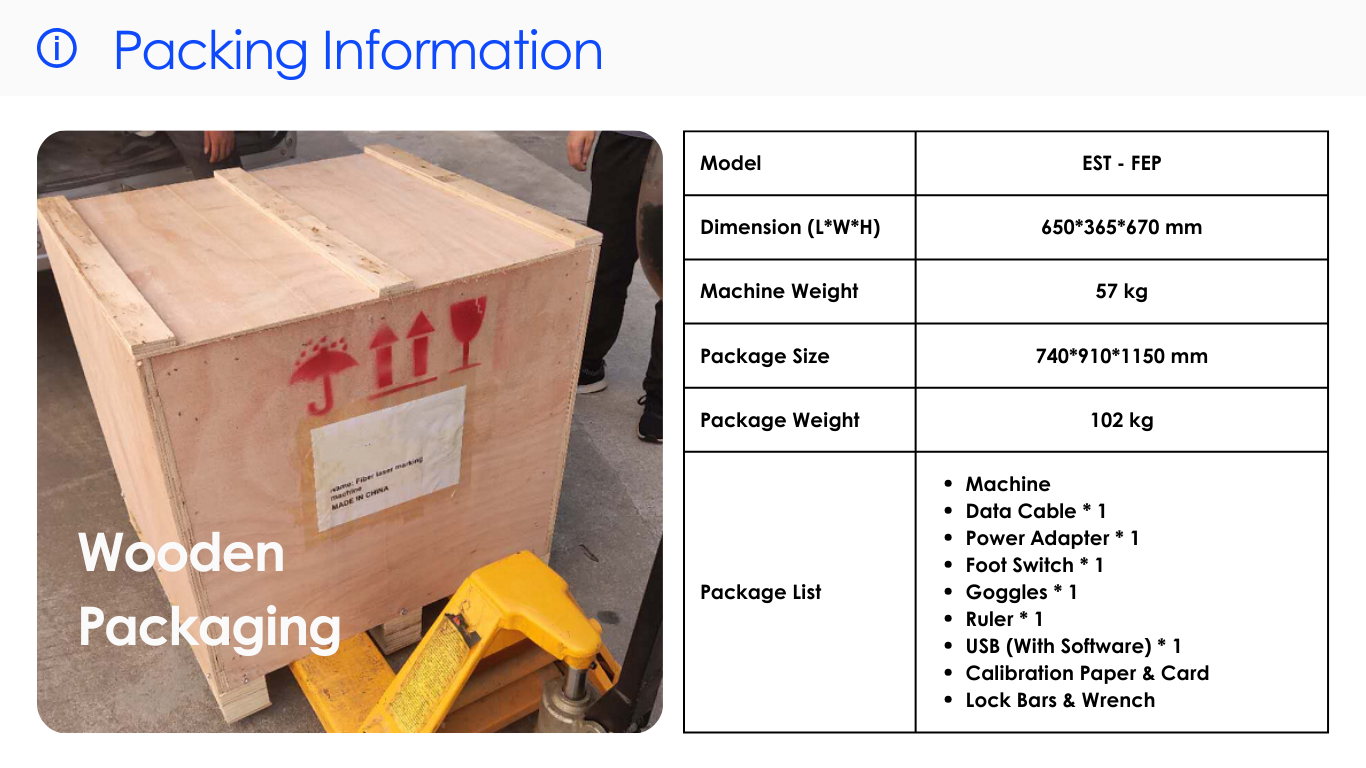

Packing Information

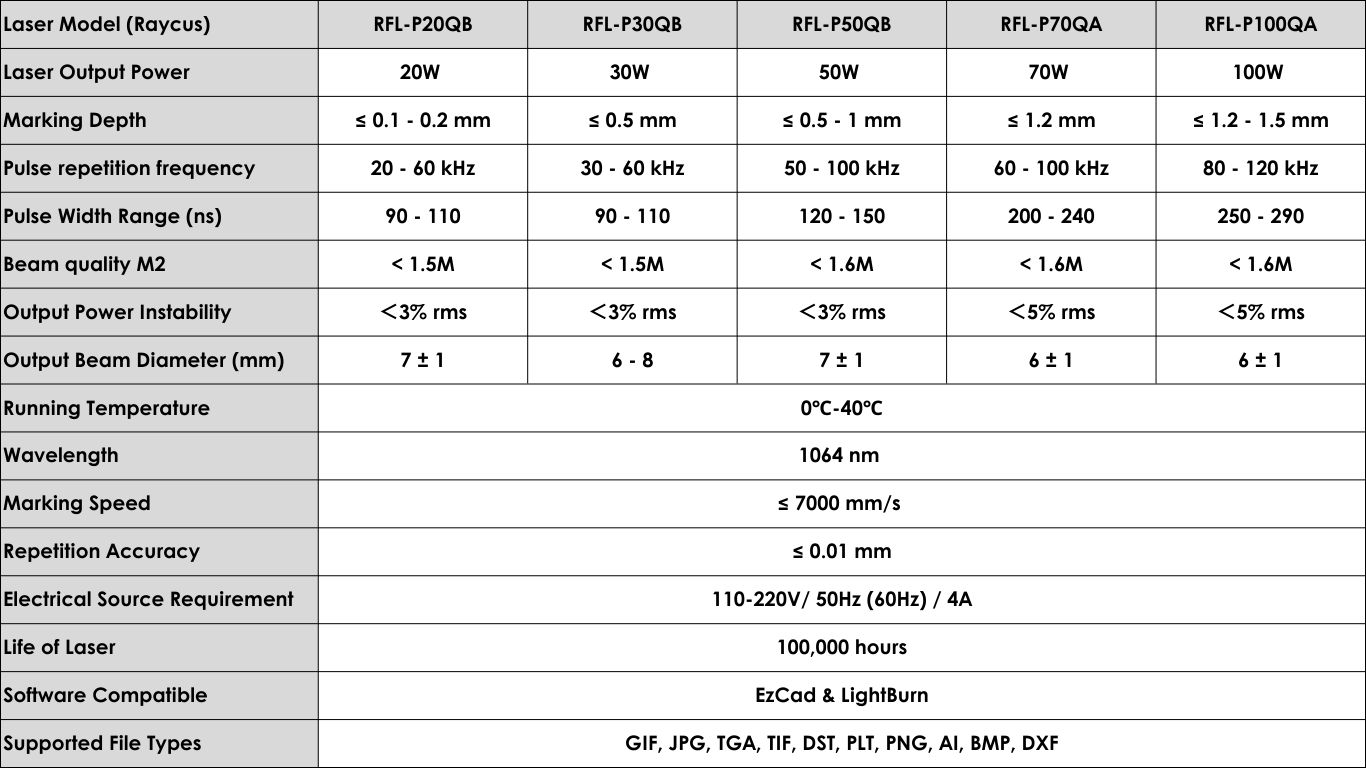

Parameters(* Differences in configuration)

Laser model (Raycus)               RFL-P20QB               RFL-P30QB               RFL-P50QB               RFL-P70QA               RFL-P100QA

Laser Output Power                      20W                          30W                          50W                        70W                         100W

Marking Depth                       ≤ 0.1 -0.2 mm              ≤ 0.5 mm                  ≤ 0.5-1 mm              ≤  1.2 mm               ≤ 1.2 -1.5 mm

Pulse repetition frequency        20-60 kHz                 30-60 kHz                50-100 kHz              60-100 kHz              80 -120 kHz

Pulse Width Range (ns)               90 - 110                    90 - 110                   120 - 150                 200 - 240                  250 - 290

Beam quality M2                         < 1.5M                      < 1.5M                     < 1.6M                        < 1.6M                        < 1.6M

Output Power instability             < 3% rms                < 3% rms                 < 3% rms                < 5% rms                 < 5% rms

Output Beam Diameter(mm)           7±1                          6 - 8                         7±1                            6±1                           6±1

Running Temperature                                                                         0°C-40°C

Wavelength                                                                                          1064 nm

Marking Speed                                                                                  ≤ 7000 mm/s

Repetition Accuracy                                                                            ≤ 0.01 mm

Electrical Source Requirement                                                 110 - 220V / 50Hz(60Hz)/ 4A

Life of Laser                                                                                     100,000 hours

Software Compatible                                                                      EzCad & LightBurn

Supported File Types                                                 GIF, JPG, TGA, TIF, DST, PLT, PNG, AI, BMP, DXF

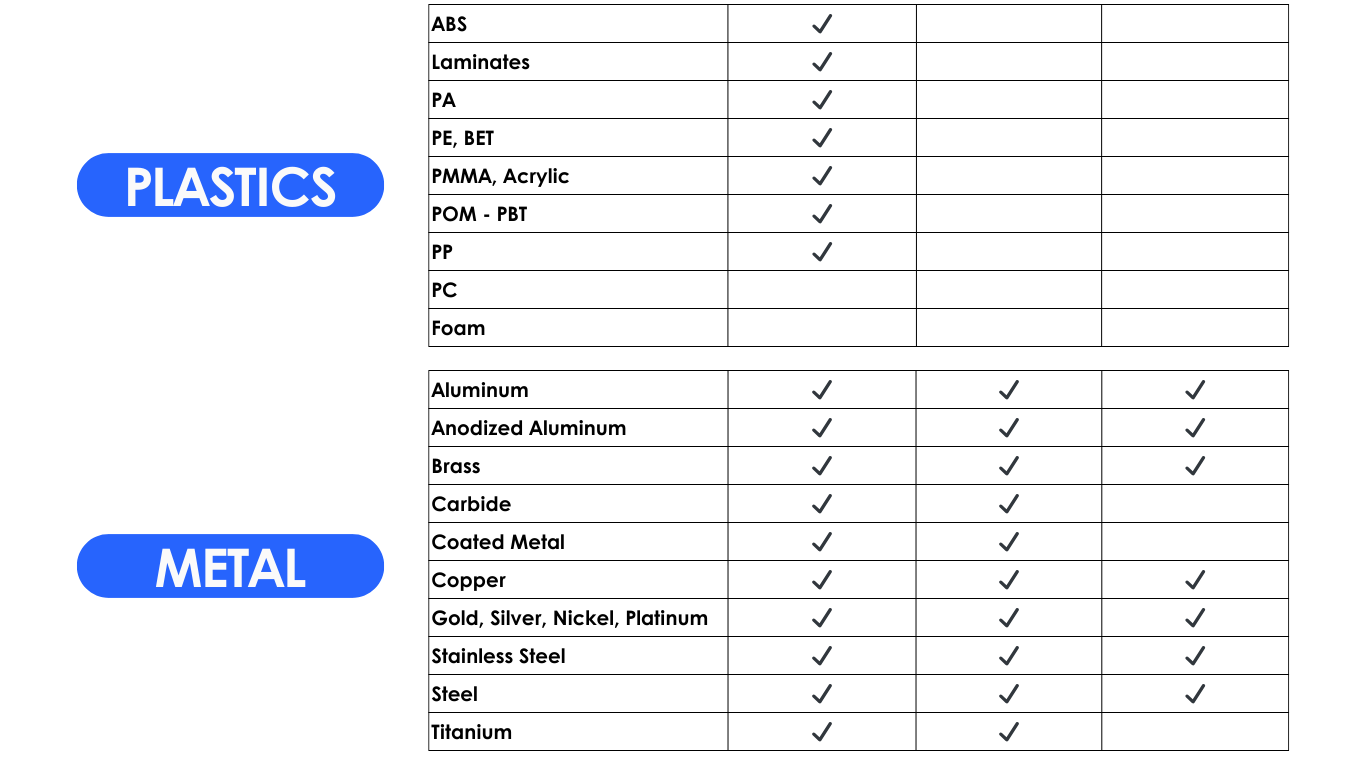

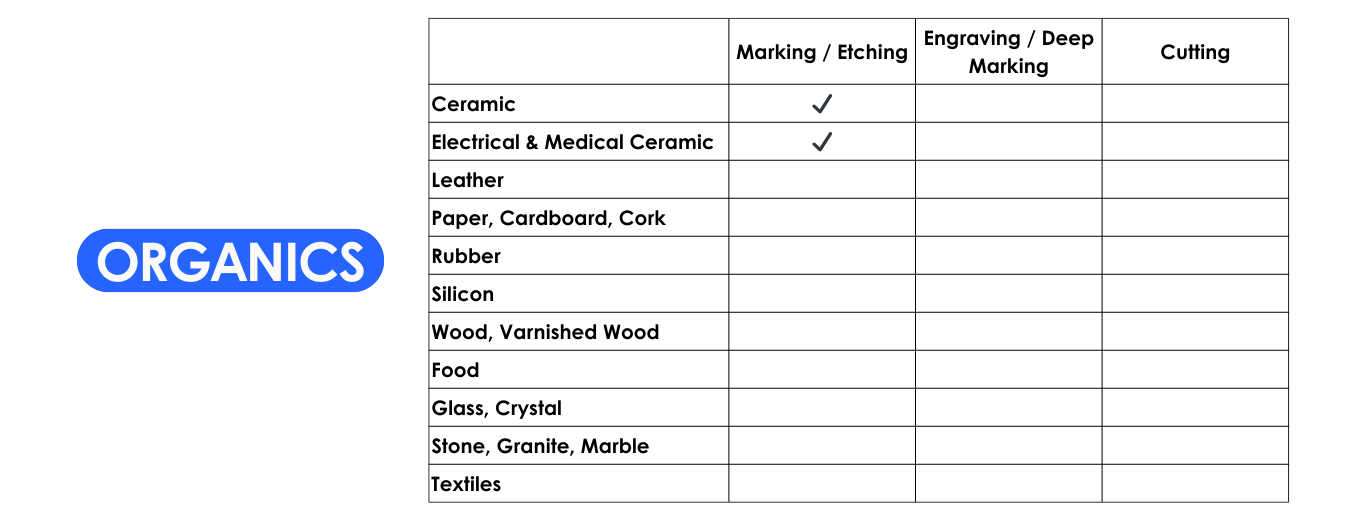

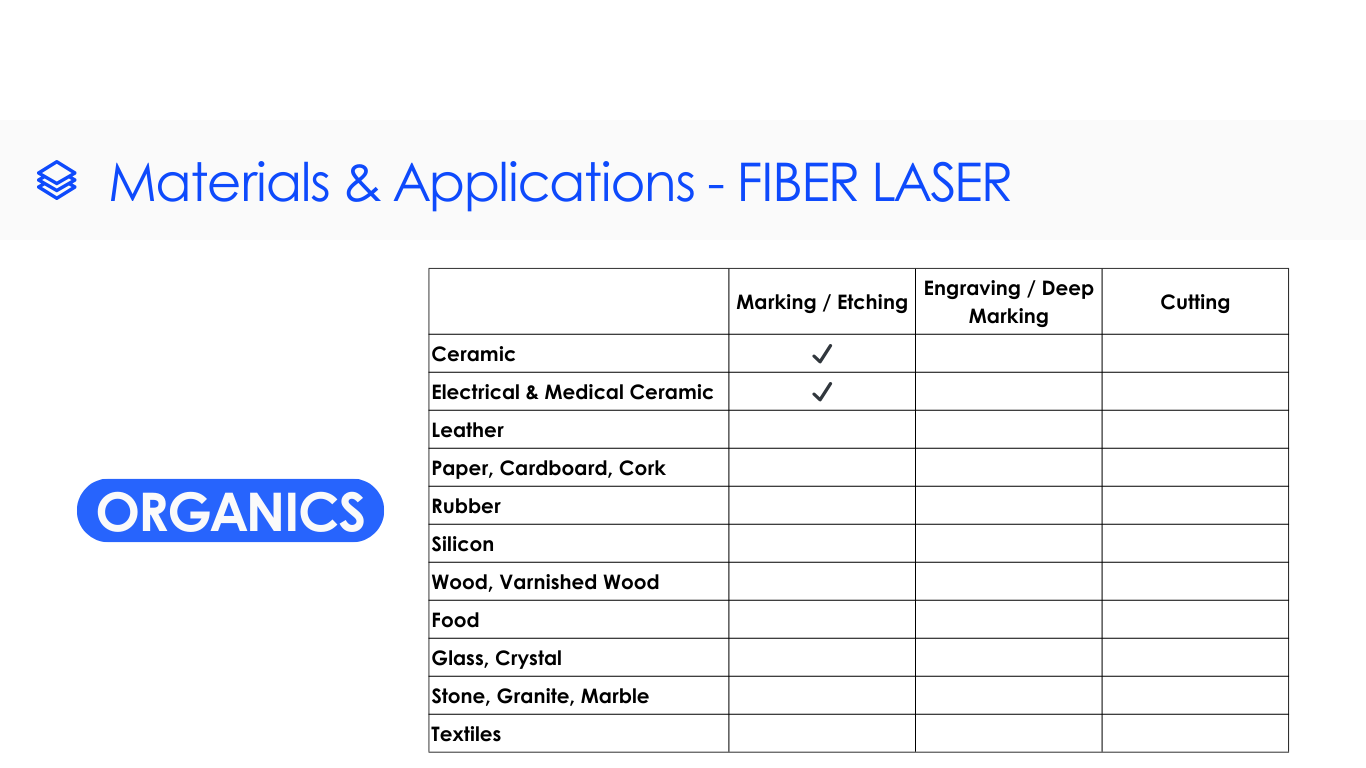

Materials & Applications - FIBER & DIODE LASER
