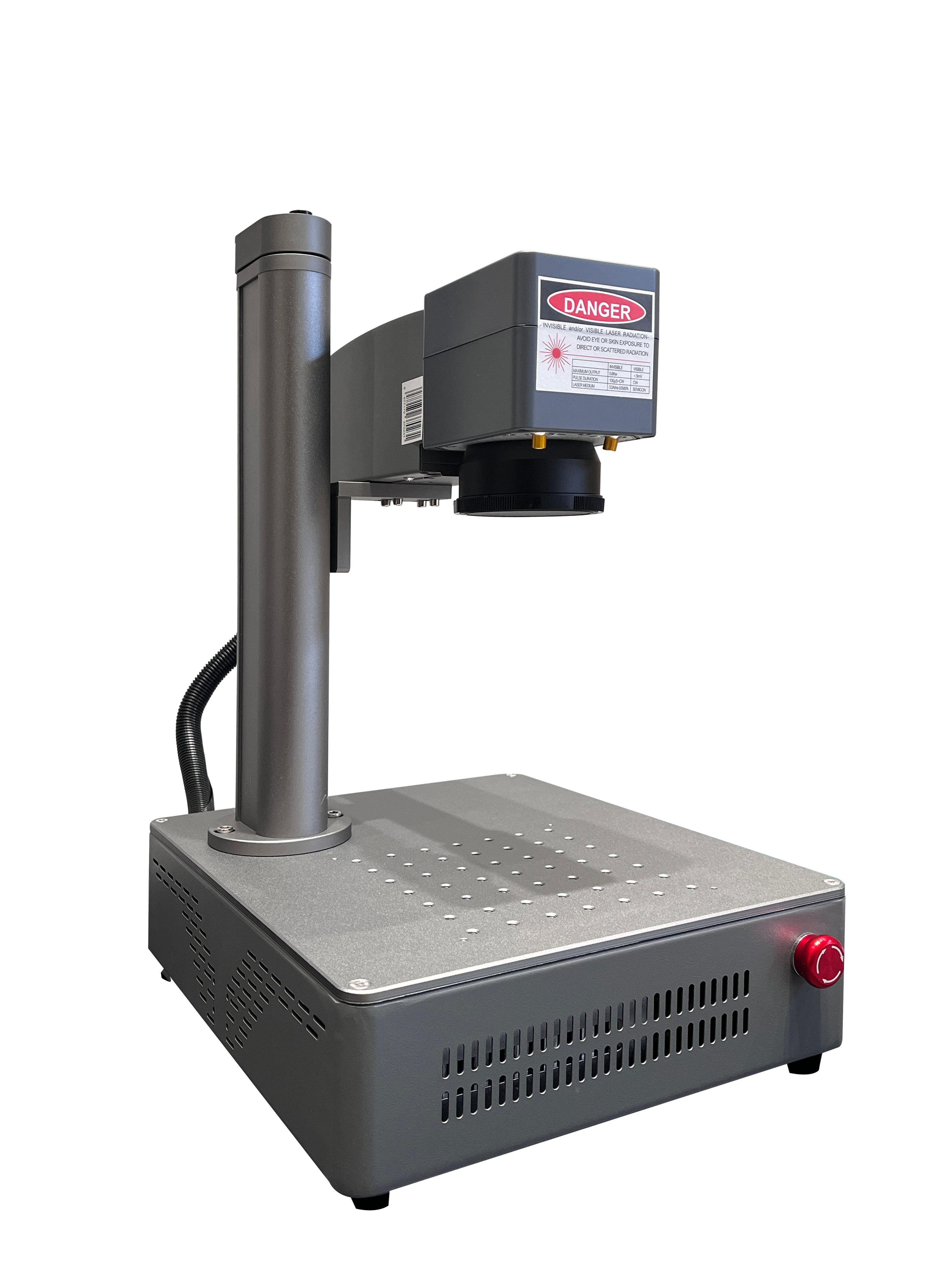

Mini Portable Fiber Laser Marking Machine
Photogallery
Information
Product content
Configuration(* Can be adjusted according toactual needs)

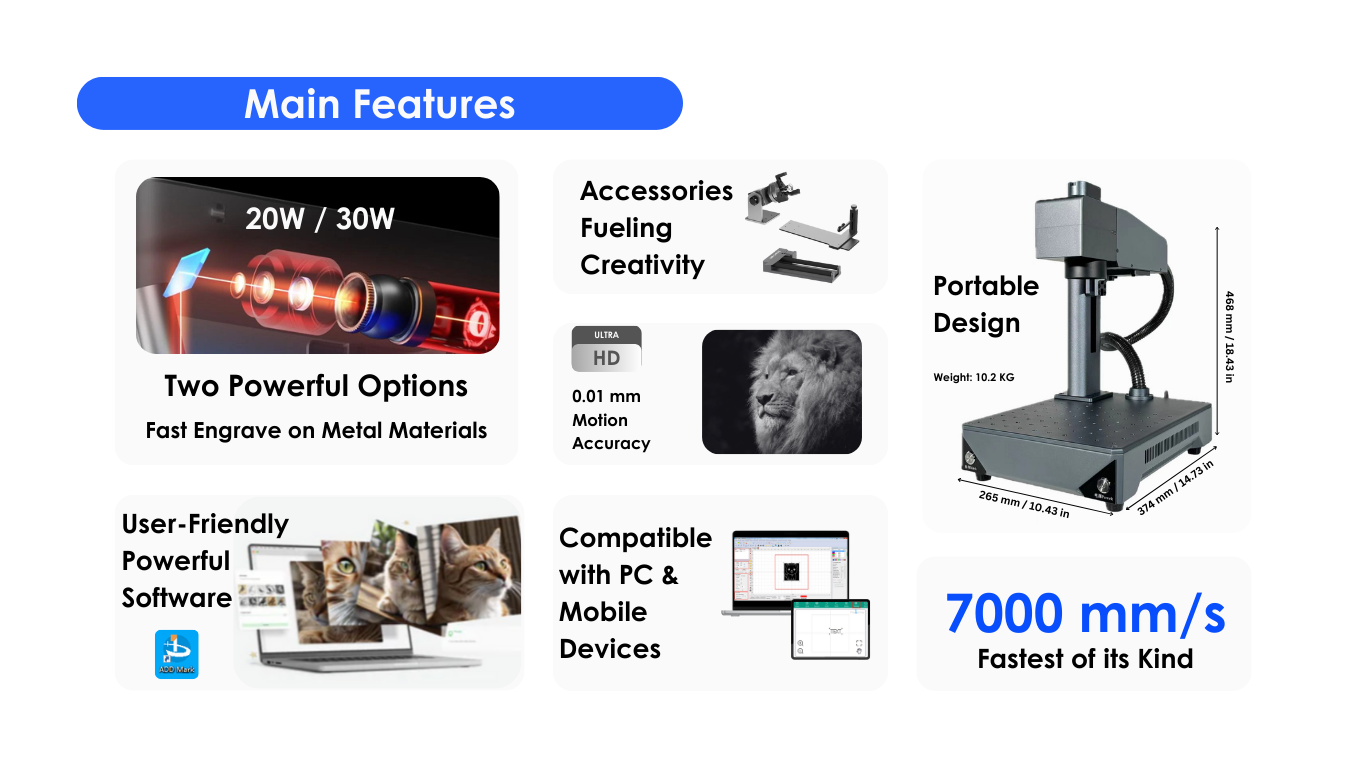

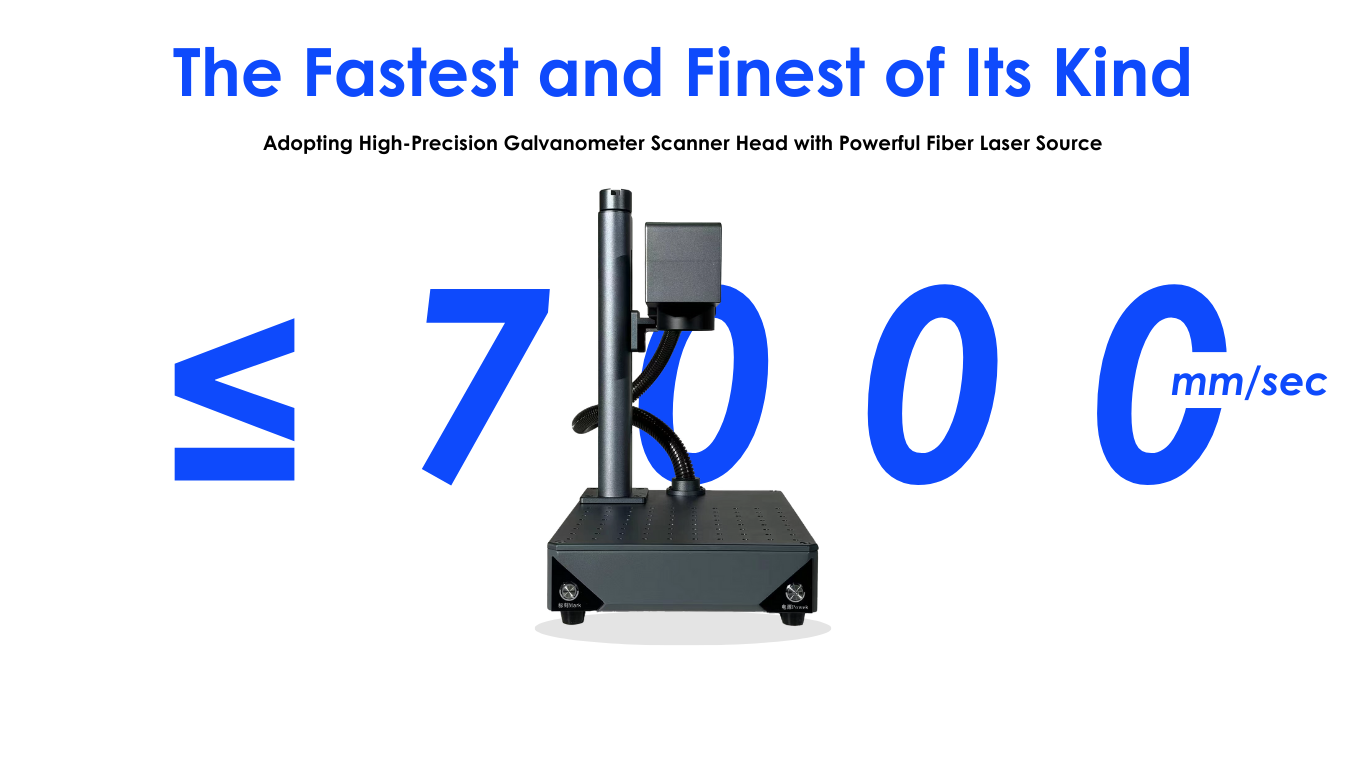

The Fastest and Finest of lts Kind
Adopting High-Precision Galvanometer Scanner Head with Powerful Fiber Laser Source

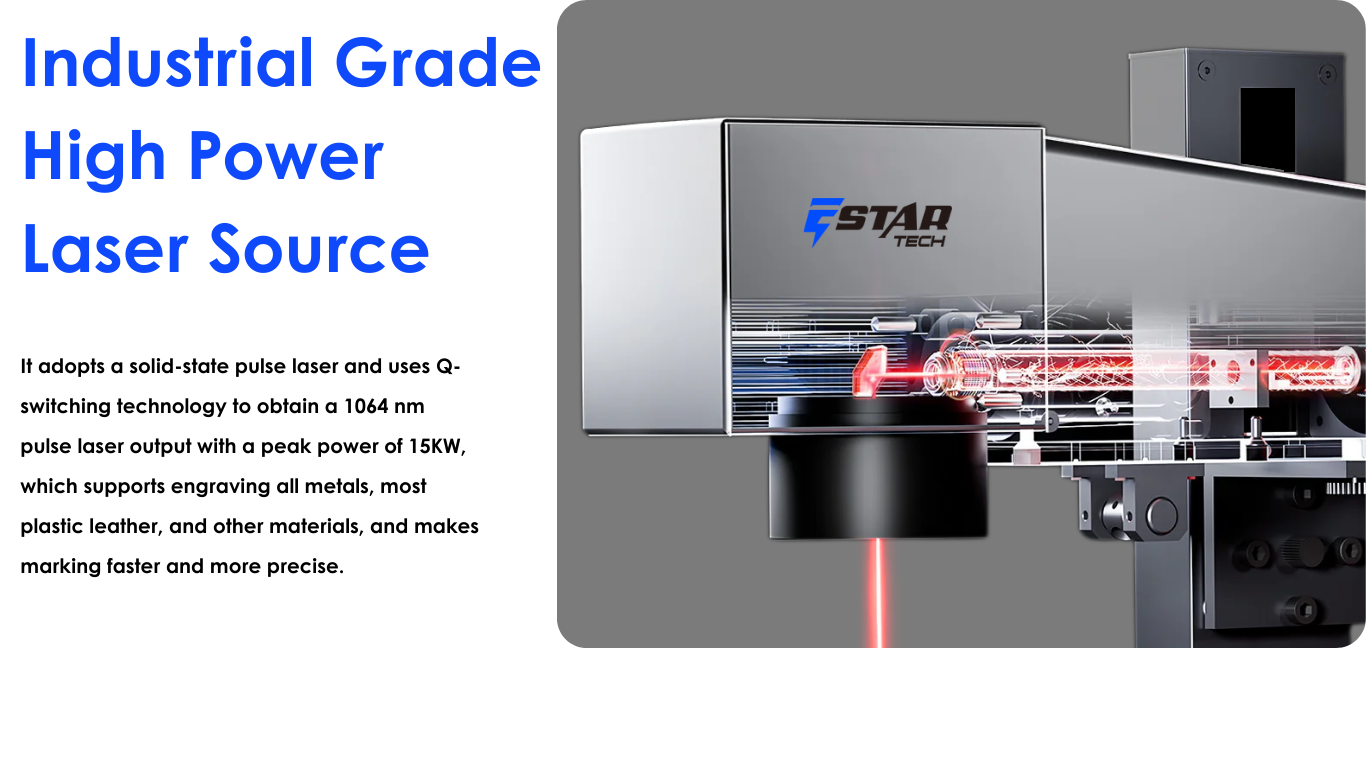

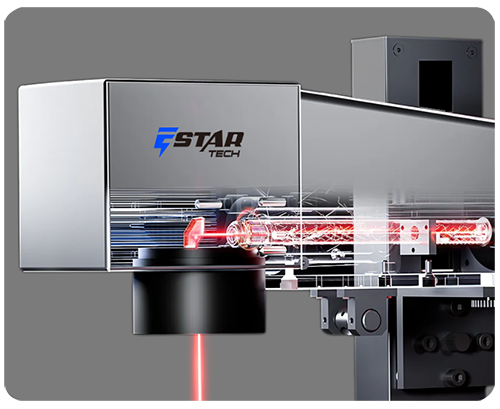

Industrial Grade
High Power
Laser Source
It adopts a solid-state pulse laser and uses
Q-switching technology to obtain a 1064 nm
pulse laser output with a peak power of 15KW,
which supports engraving all metals,
most plastic leather, and other materials,
and makes marking faster and more precise

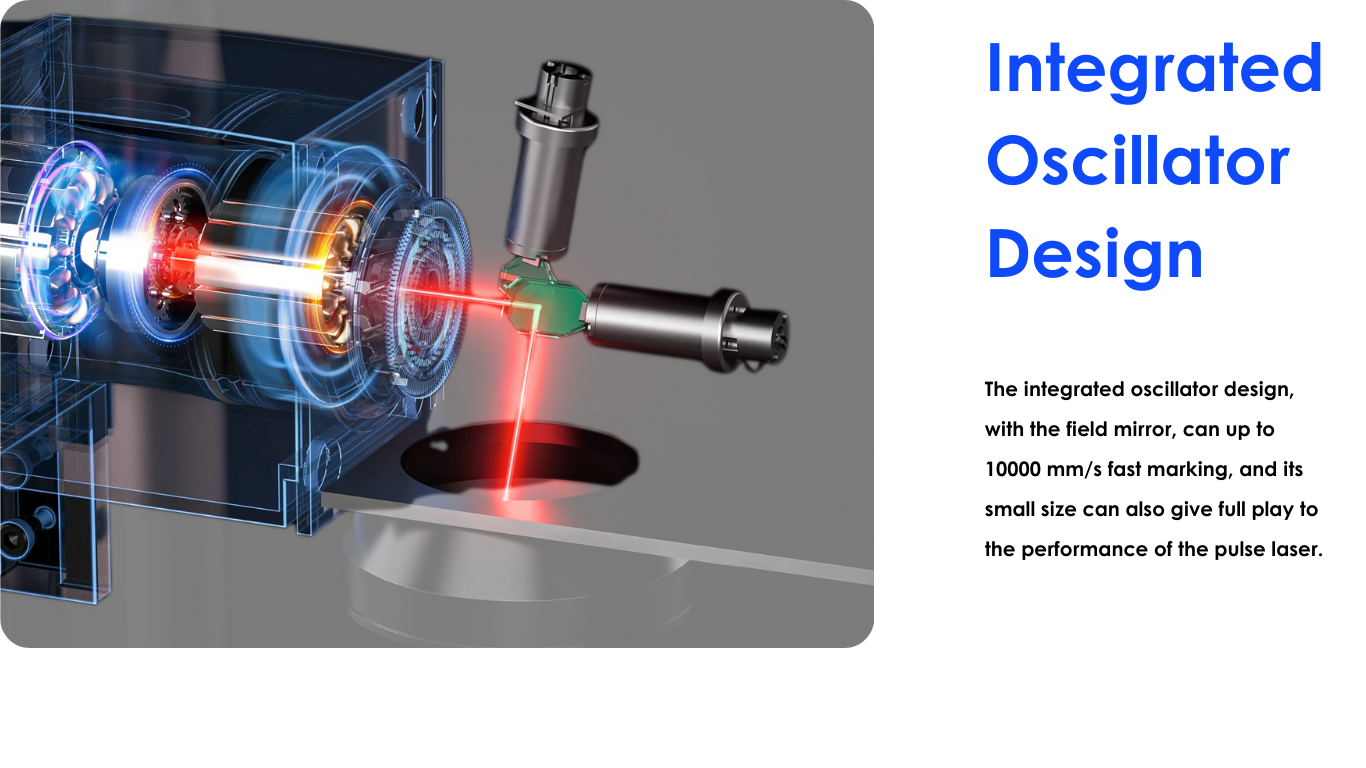

Integrated
Oscillator
Design
The integrated oscillator designwith the field mirror,
can up to10000 mm/s fast marking, and itssmall size
can also give full play tothe performance of the pulse laser

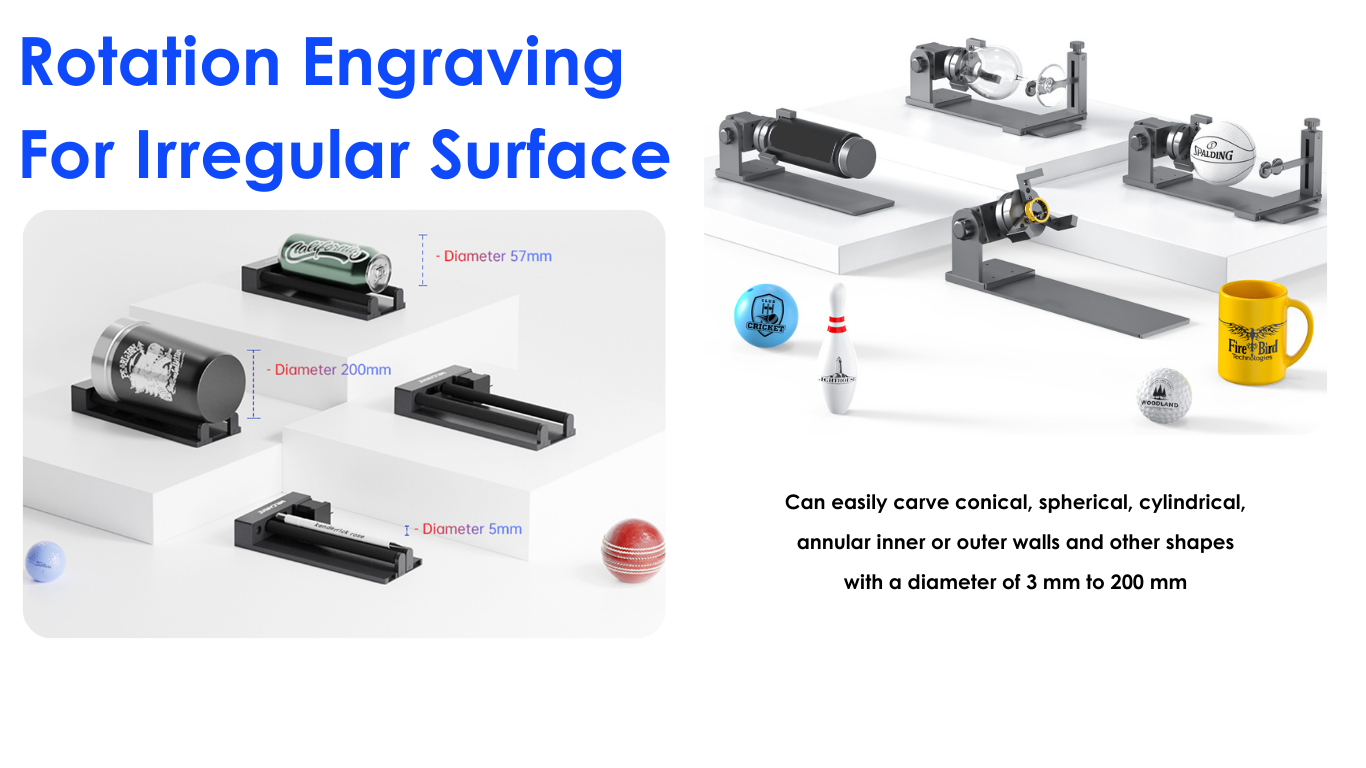

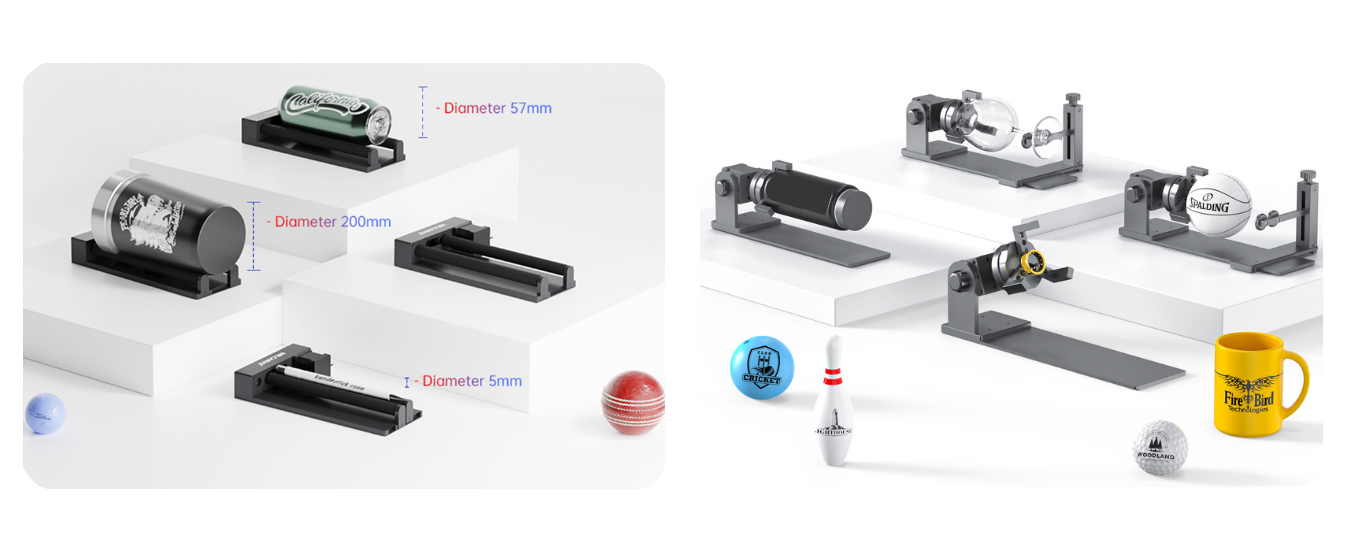

Rotation EngravingFor lrregular Surface
Can easily carve conical,spherical, cylindricalannular inner or outer walls and other shapeswith a diameter of 3 mm to 200 mm

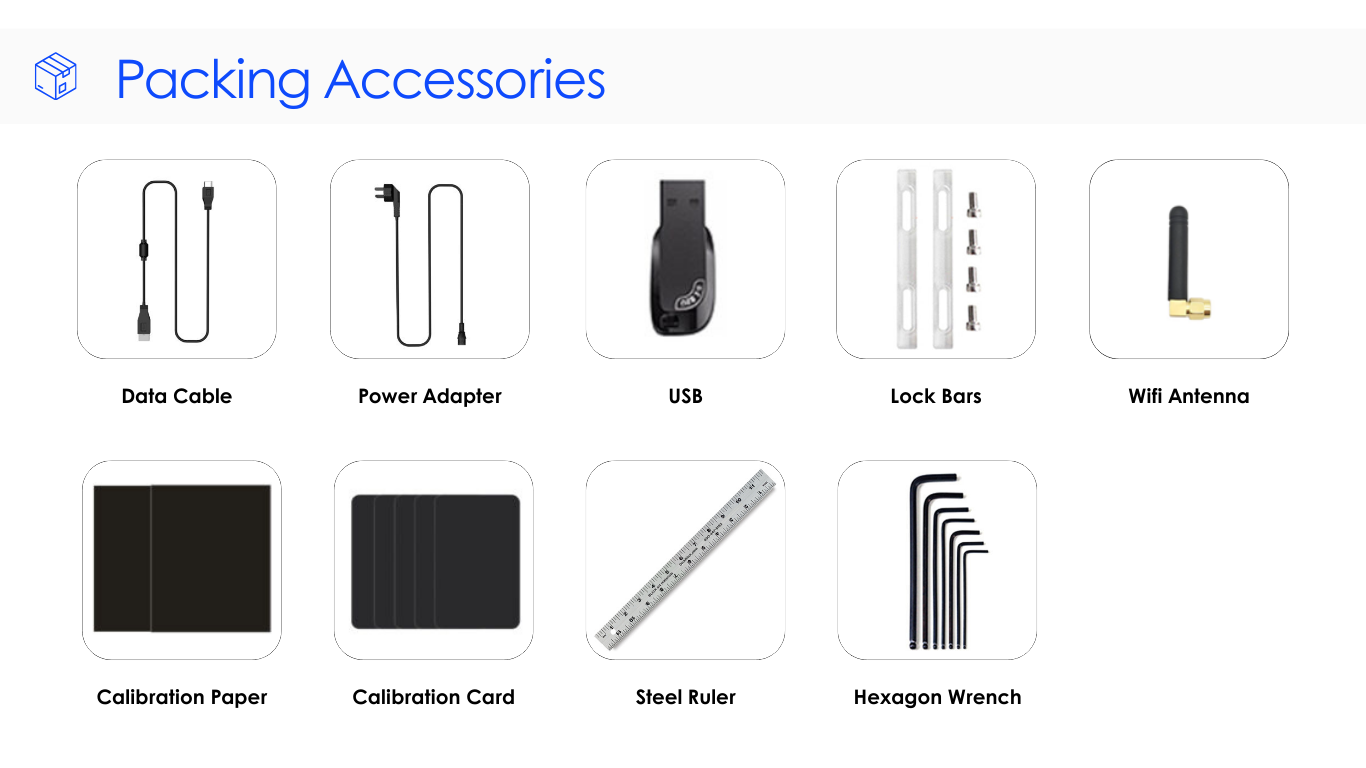

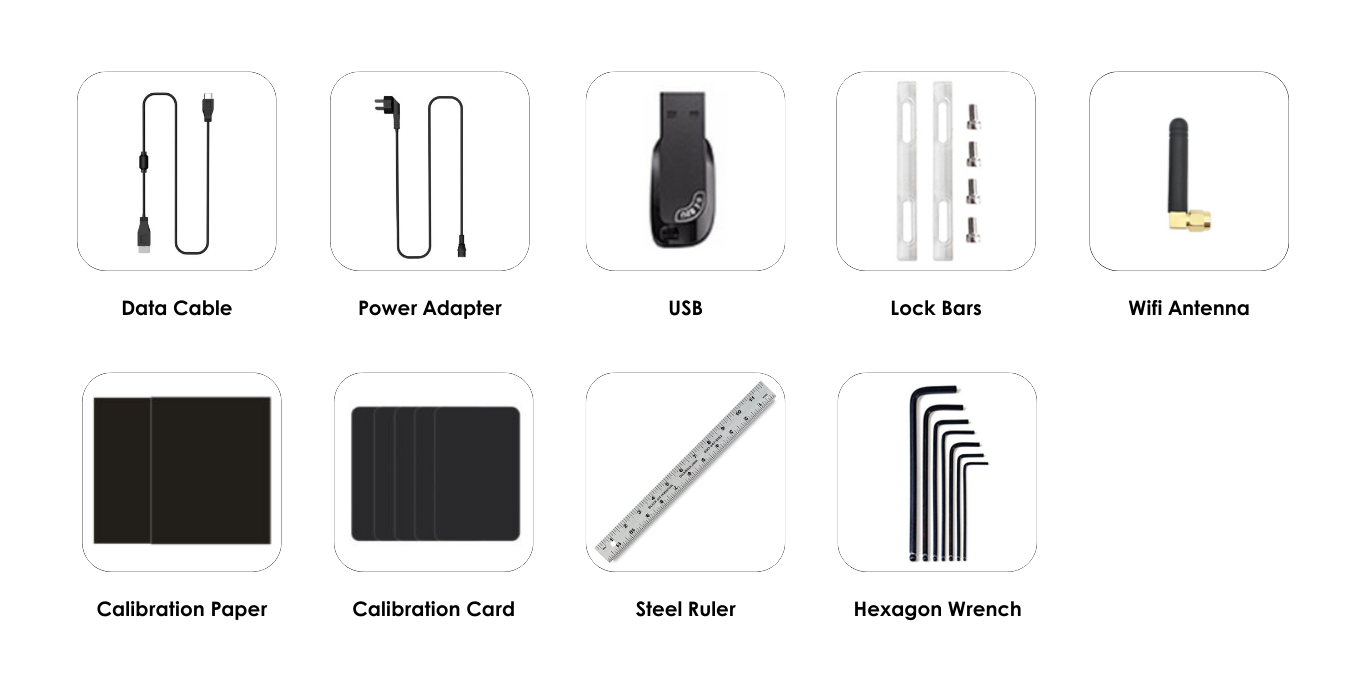

Packing Accessories
Packing Information
|
Model： |
EST -F1 |
|
Dimension(L*W*H)： |
230*360*330 mm |
|
Machine Weight： |
5.9 KG |
|
Package Size： |
470*360*280 mm |
|
Package Weight： |
7 KG |
|
Package list： |
·Machine ·Data Cable*1 ·Power Adapter * ·Wifi Antenna * 1 ·Steel Ruler * 1 ·USB(With Software)*1 ·Calibration Paper & Card. ·Lock Bars & Wrench |

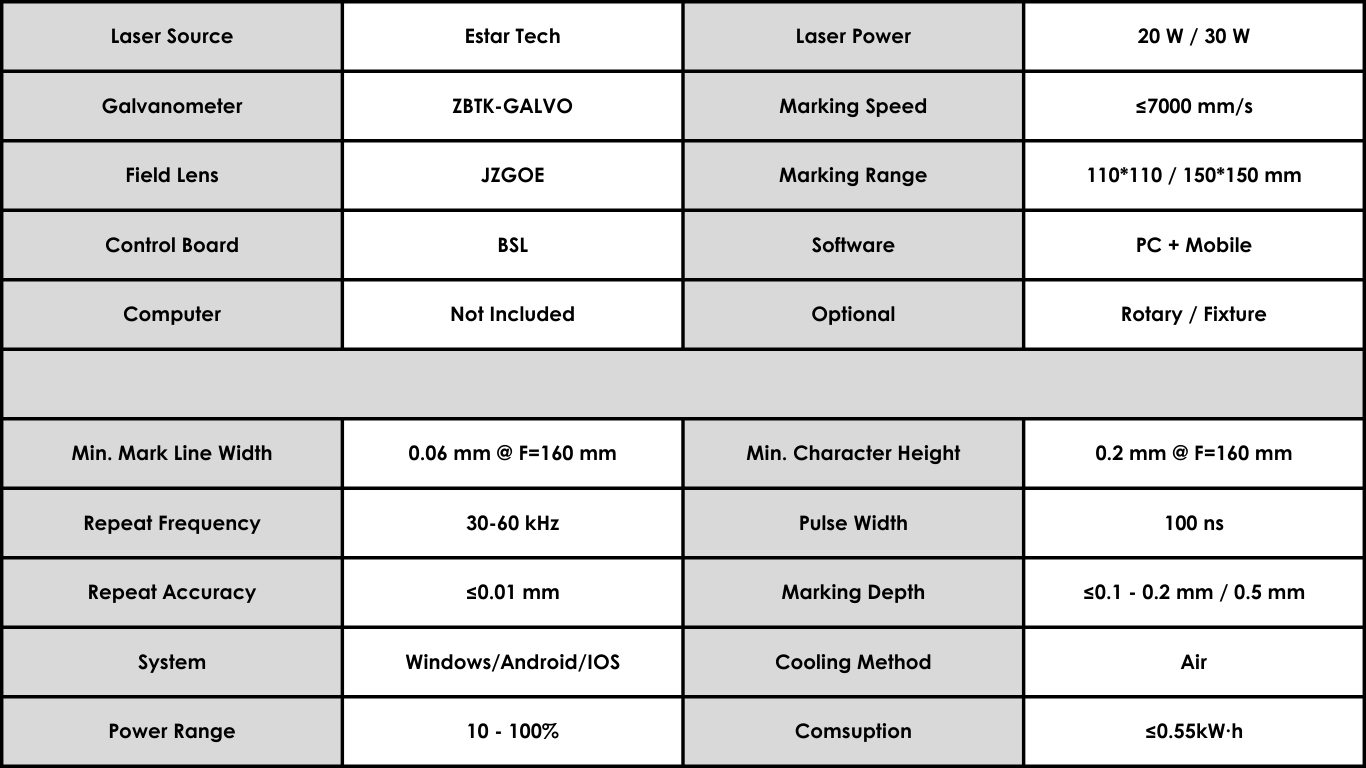

Parameters(* Differences in configuration)
Laser Source: Estar Tech
Laser Power: 20W / 30W
Marking Speed: ≤7000 mm/s
Cooling Method: Air
Comsuption: ≤0.55kW·h
Galvanometer: ZBTK-GALVO
Field Lens: JZGOE
Control Board: BSL
Marking Range: 110*110/150*150 mm
Software: PC+ Mobile
Optional: Rotary / Fixture
Min. Mark Line Width: 0.06 mm @ F=160 mm
Min.Character Height: 0.2 mm @ F=160 mm
Repeat Frequency: 30-60 kHZ
Pulse Width: 100 ns
Repeat Accuracy: ≤0.01 mm
Marking Depth: ≤0.1-0.2 mm/0.5 mm
System: Windows/Android/lOS
Power Range: 10-100%

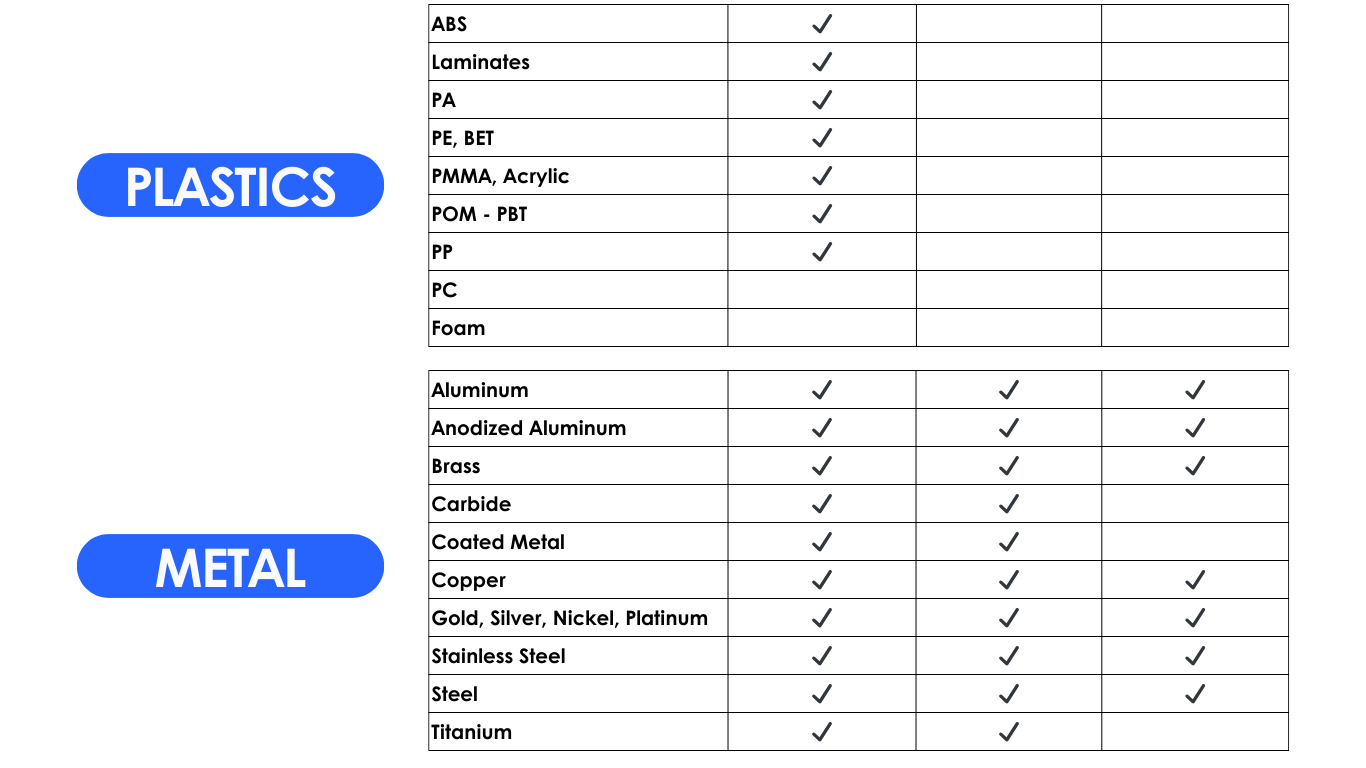

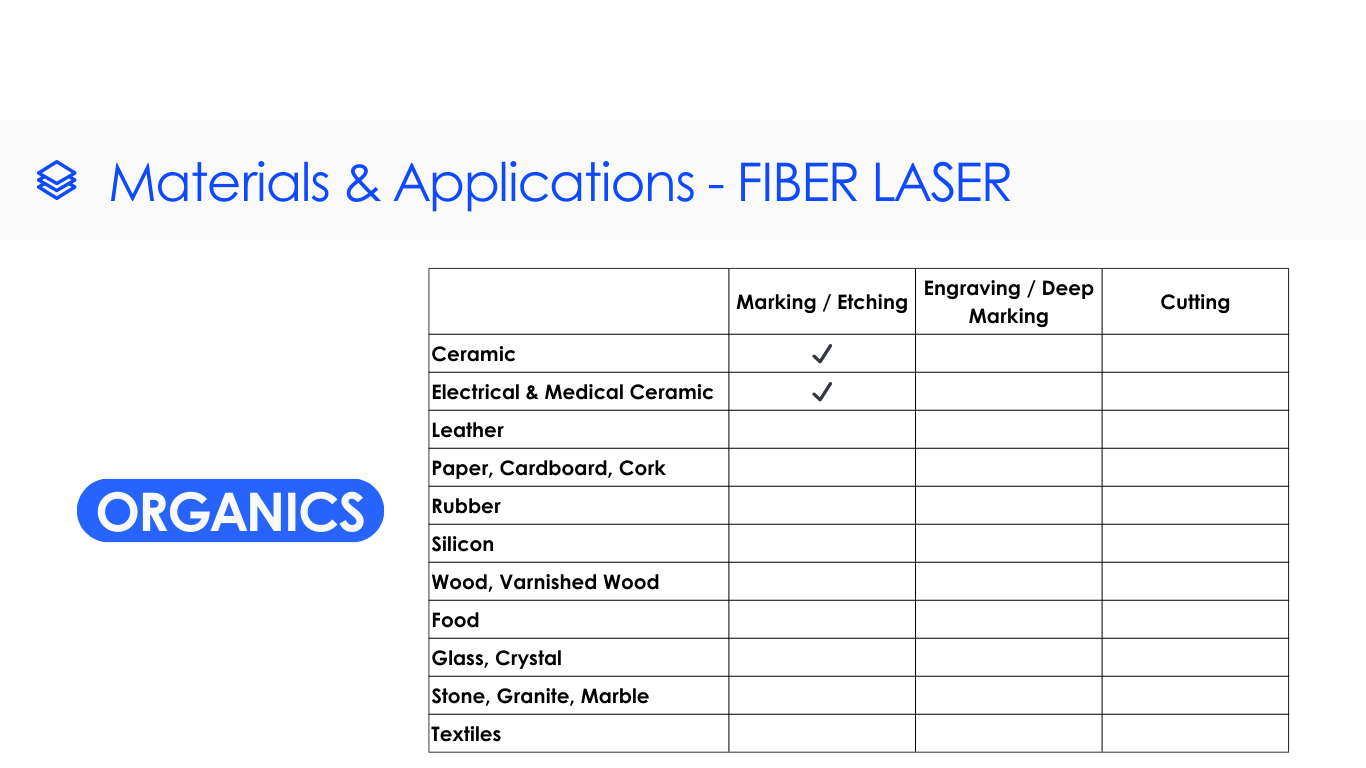

Materials & Applications - FIBER & DIODE LASER
