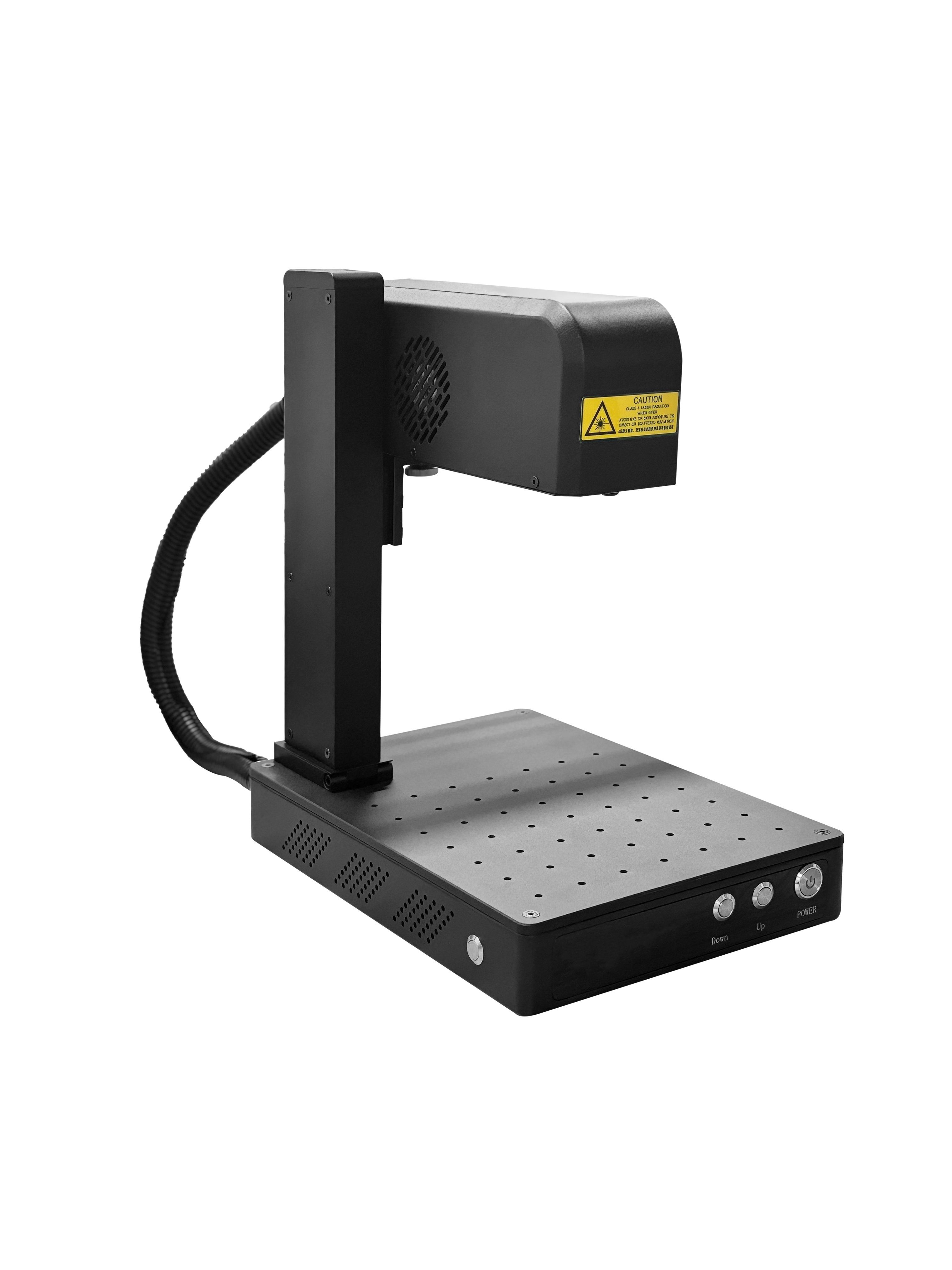

Mini Dual (Diode 10W + Fiber 2W) Laser Marking Machine For Marking All Materials
Photogallery
Information
Product content
Configuration(* Can be adjusted according to actual need)

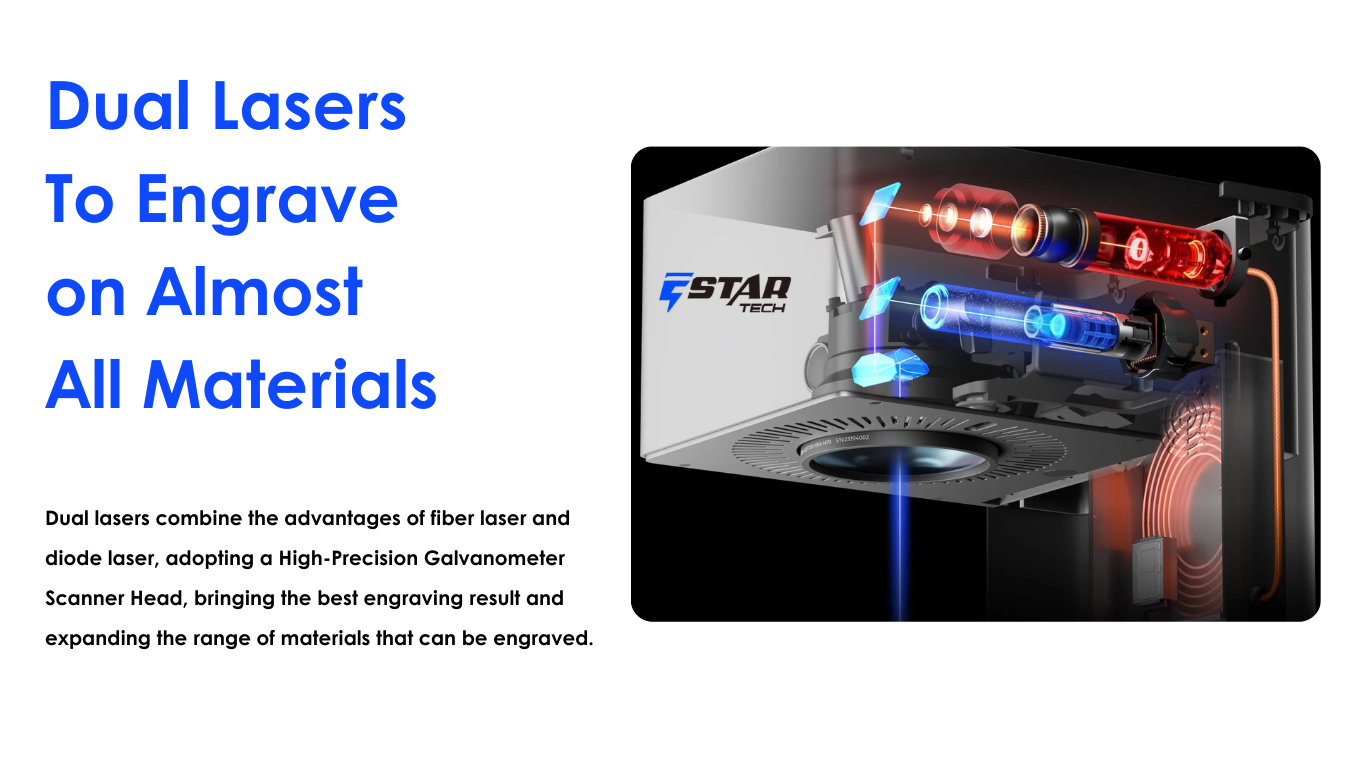

Dual Lasers To Engrav on Almost All Materials
Dual lasers combine the advantages of fiber laser anddiode laser,adopting a High-Precision GalvanometerScanner Head, bringing the best engraving result andexpanding the range of materials that can be engraved

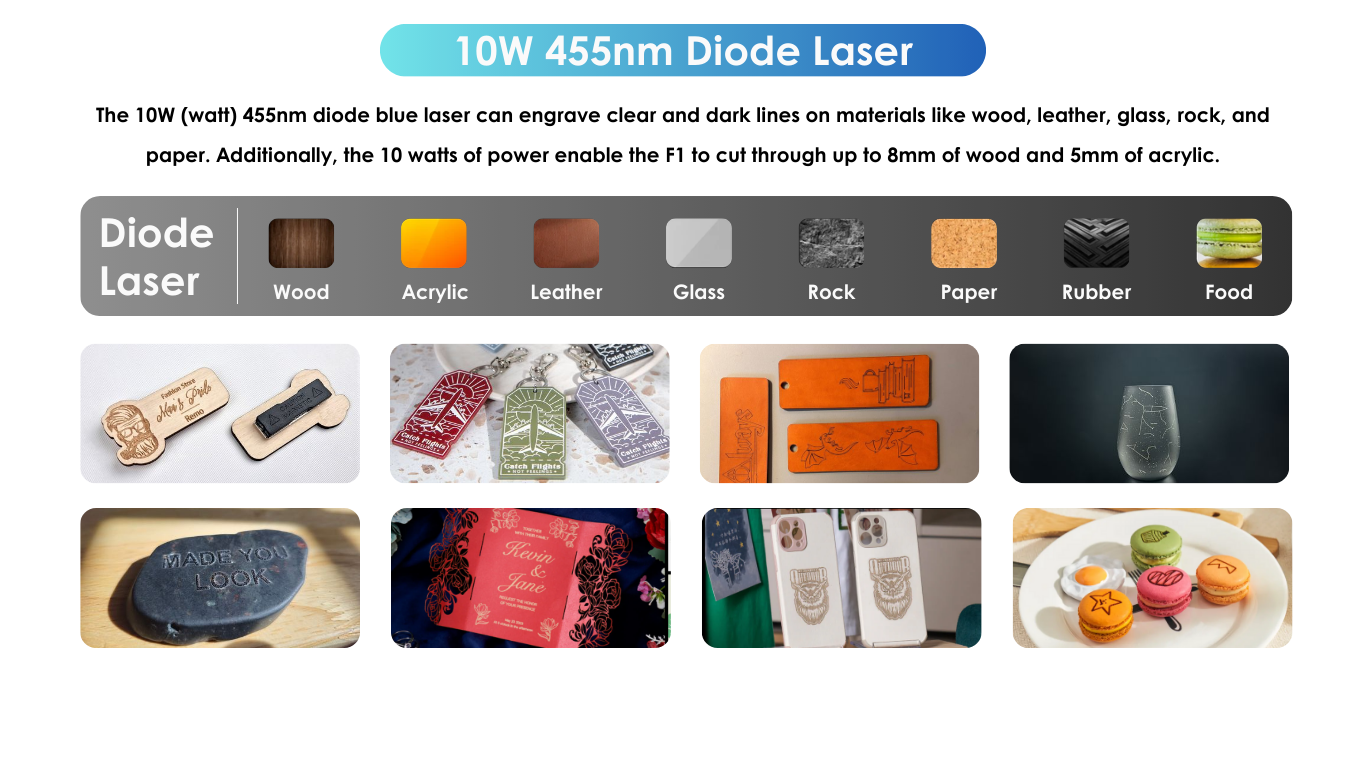

The 10W (walt) 455nm diode blue laser can engrave clear and dark lines on materials ike wood, leather, glass, rock, andpaper. Additionally, the 10 watts of power enable the F1 to cut through up to 8mm of wood and 5mm of acrylic.
The 2W 1064nm infrared laser expands the engraving capabilities to include all metals and plastics,
broadening the range of materials that can be engraved.

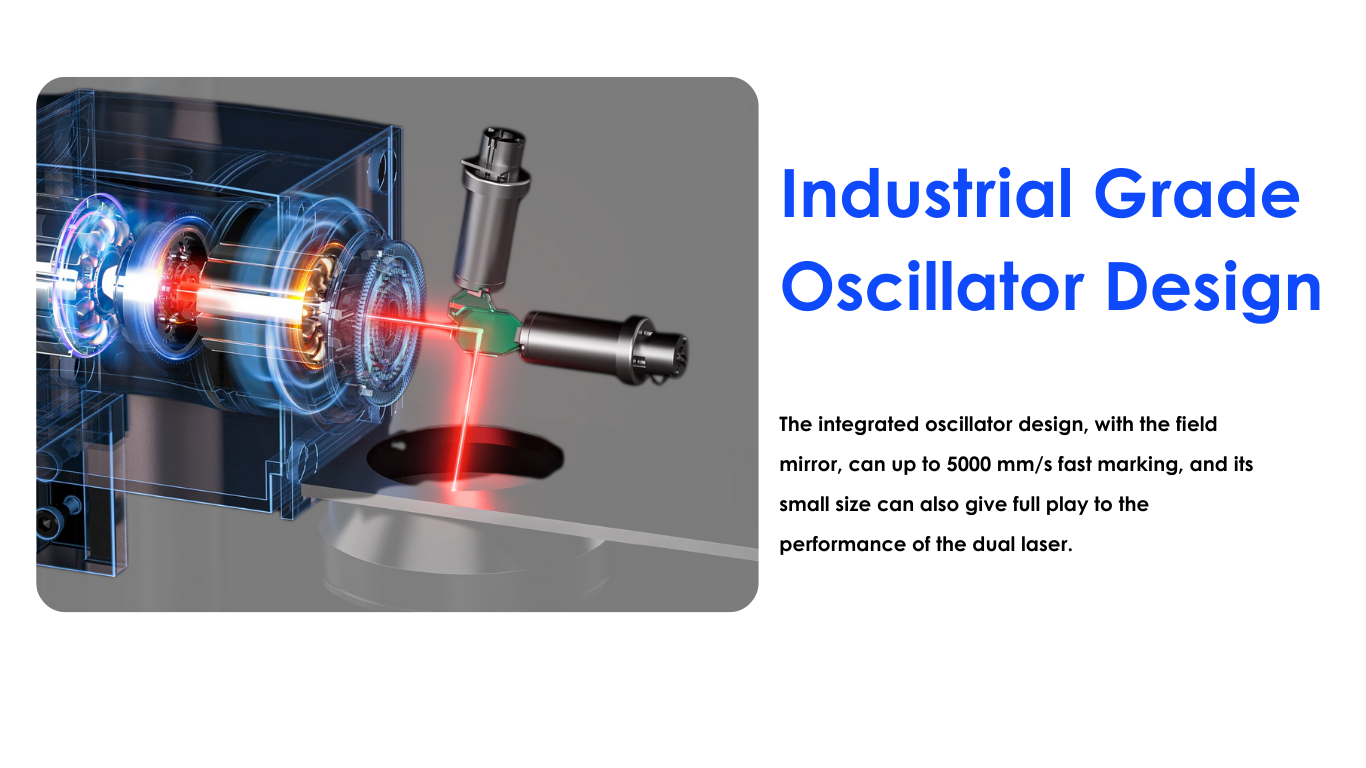

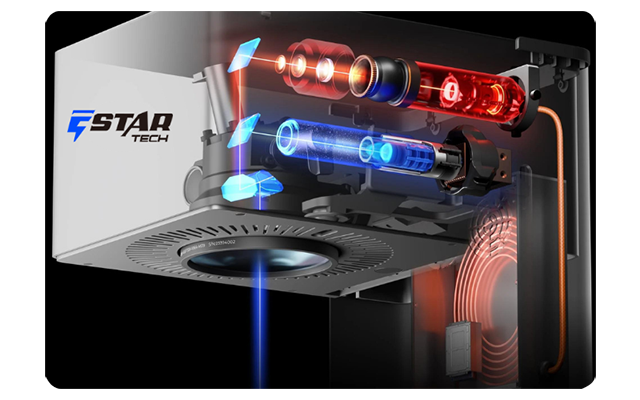

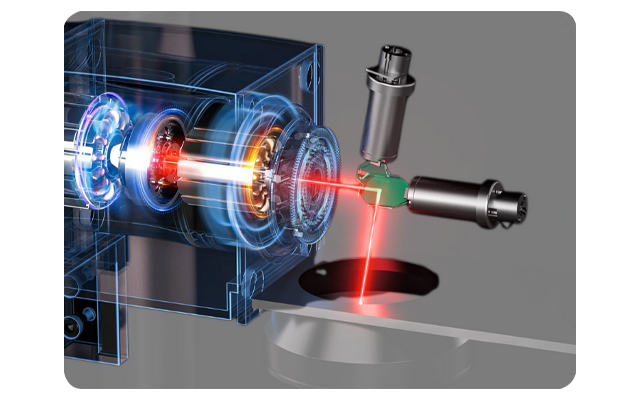

Industrial CradeOscillator Design
The integrated oscillator design, with the field mirror, can up to 5000 mm/s fast marking, and its small size can also give full play to the performance of the dual laser.

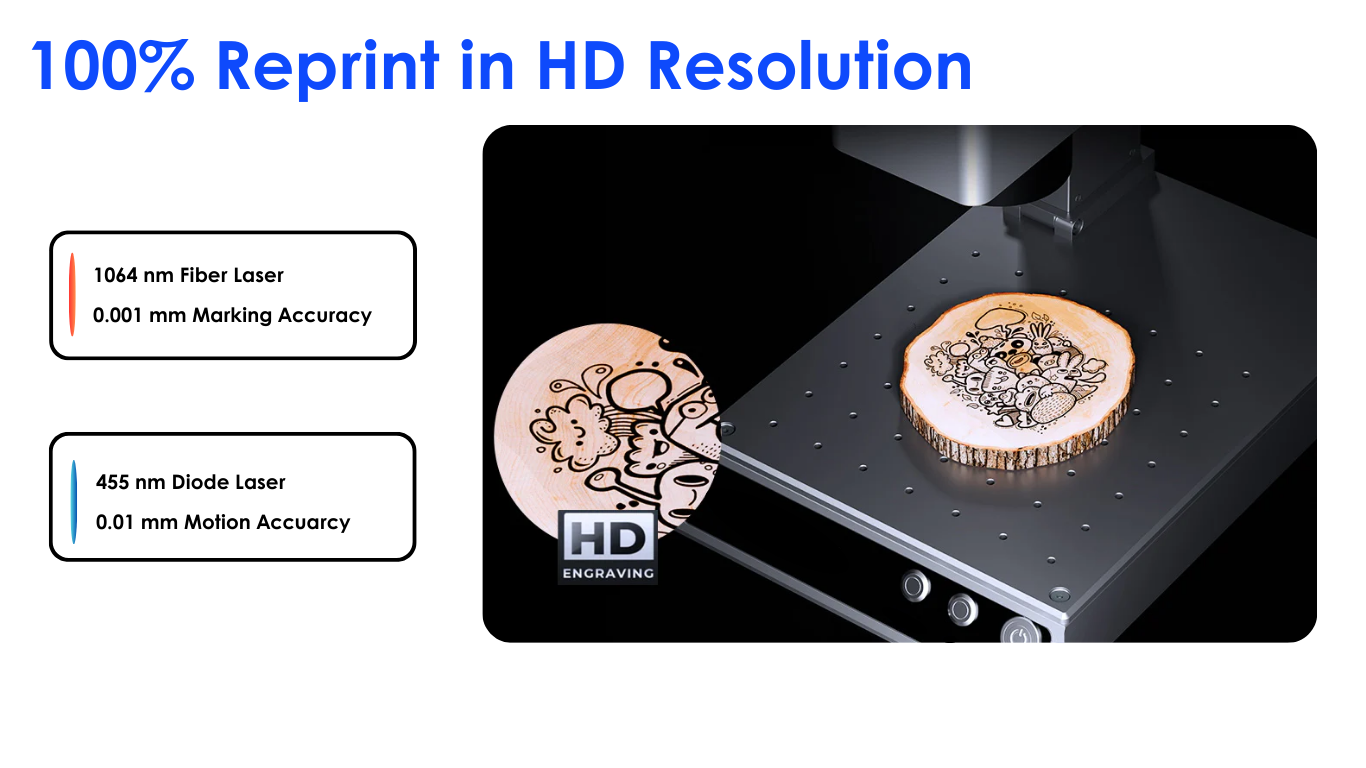

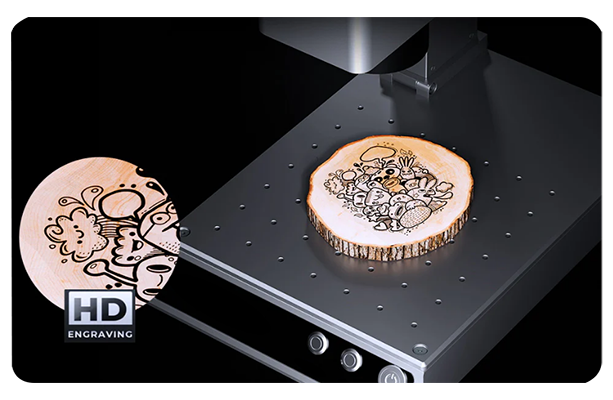

100% Reprint in HD Resolution
·1064 nm Fiber laser
·0.001 mm Marking Accuracy
·455 nm Diode Laser
·0.01 mm Motion Accuarcy

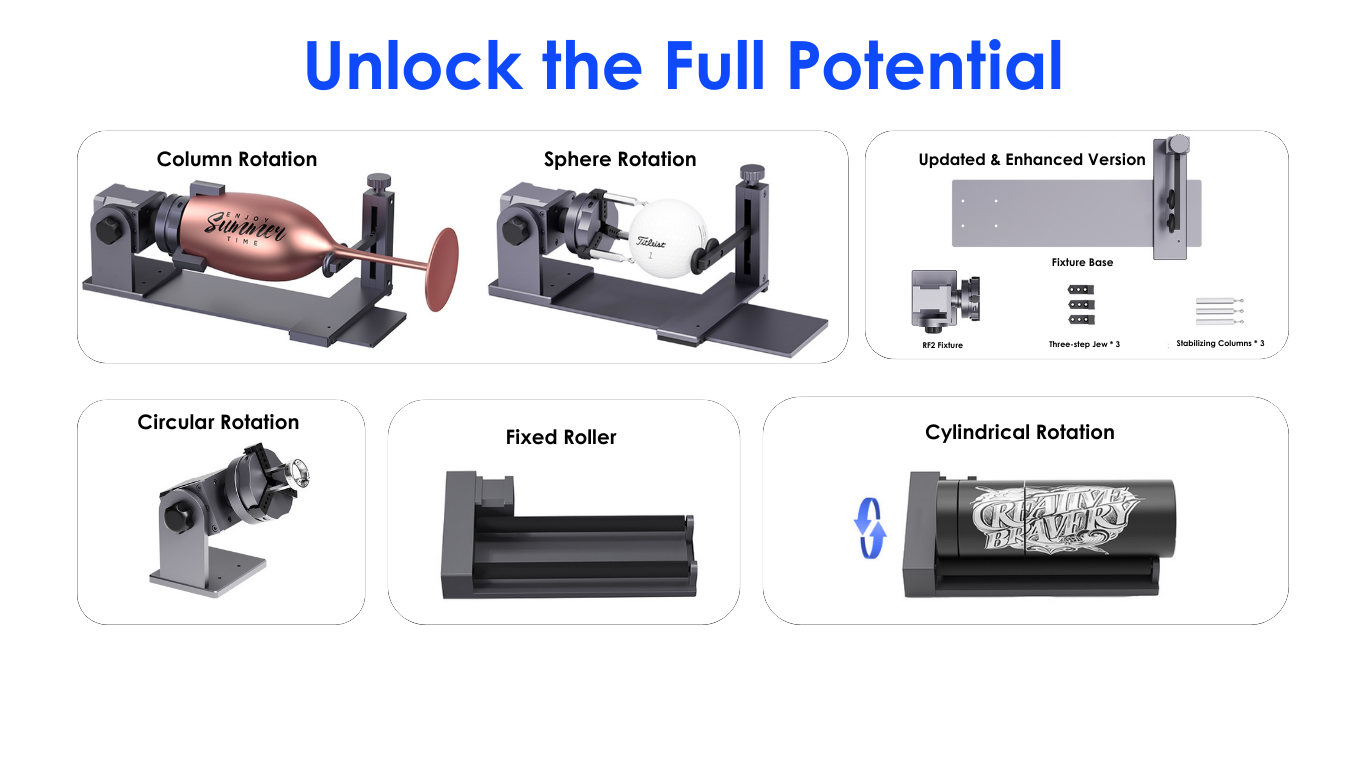

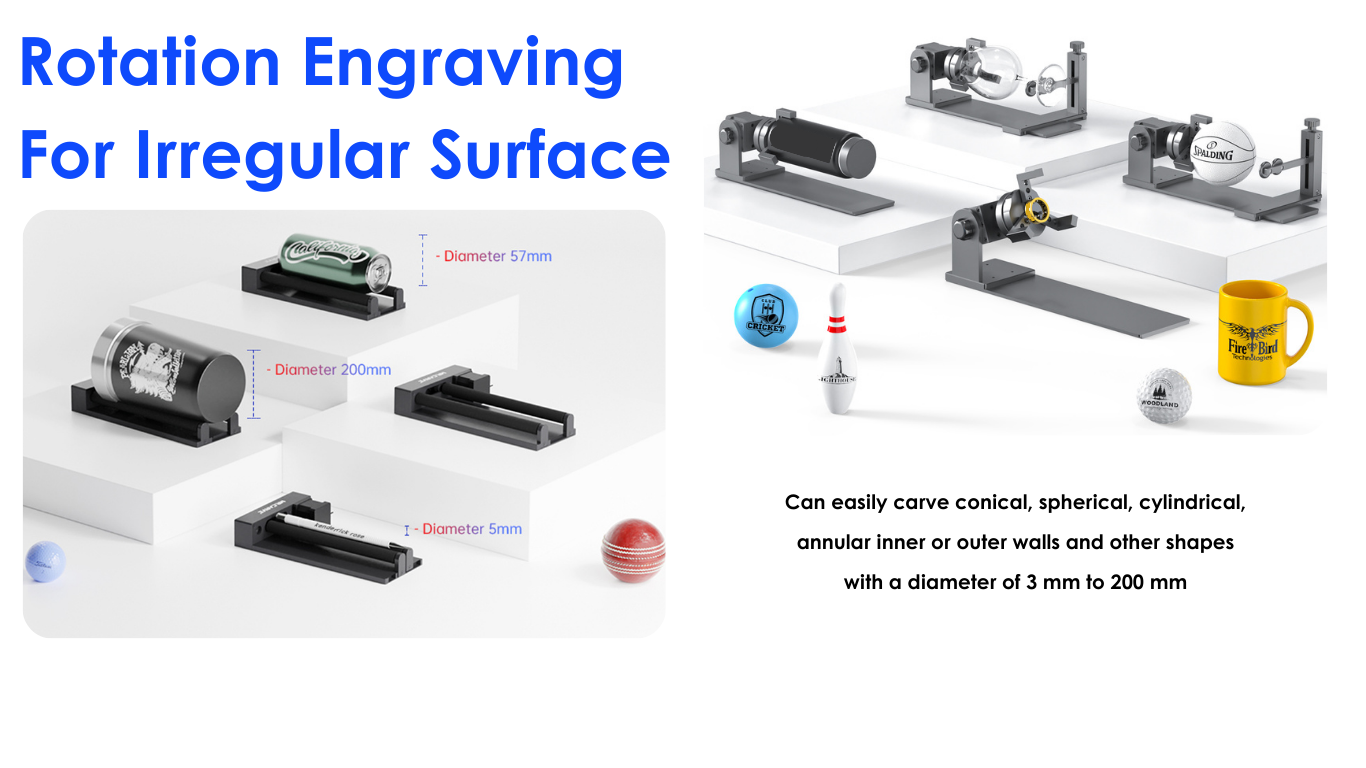

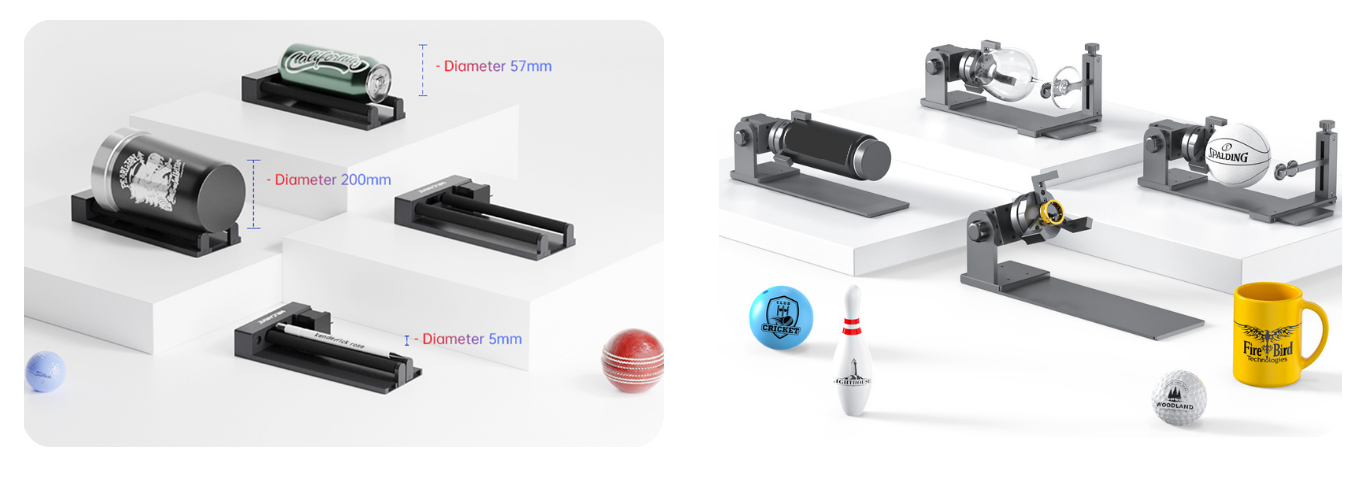

Rotation Engraving For lrregular Surface
Can easily carve conical,spherical, cylindricalannular inner or outer walls and other shapeswith a diameter of 3 mm to 200 mm

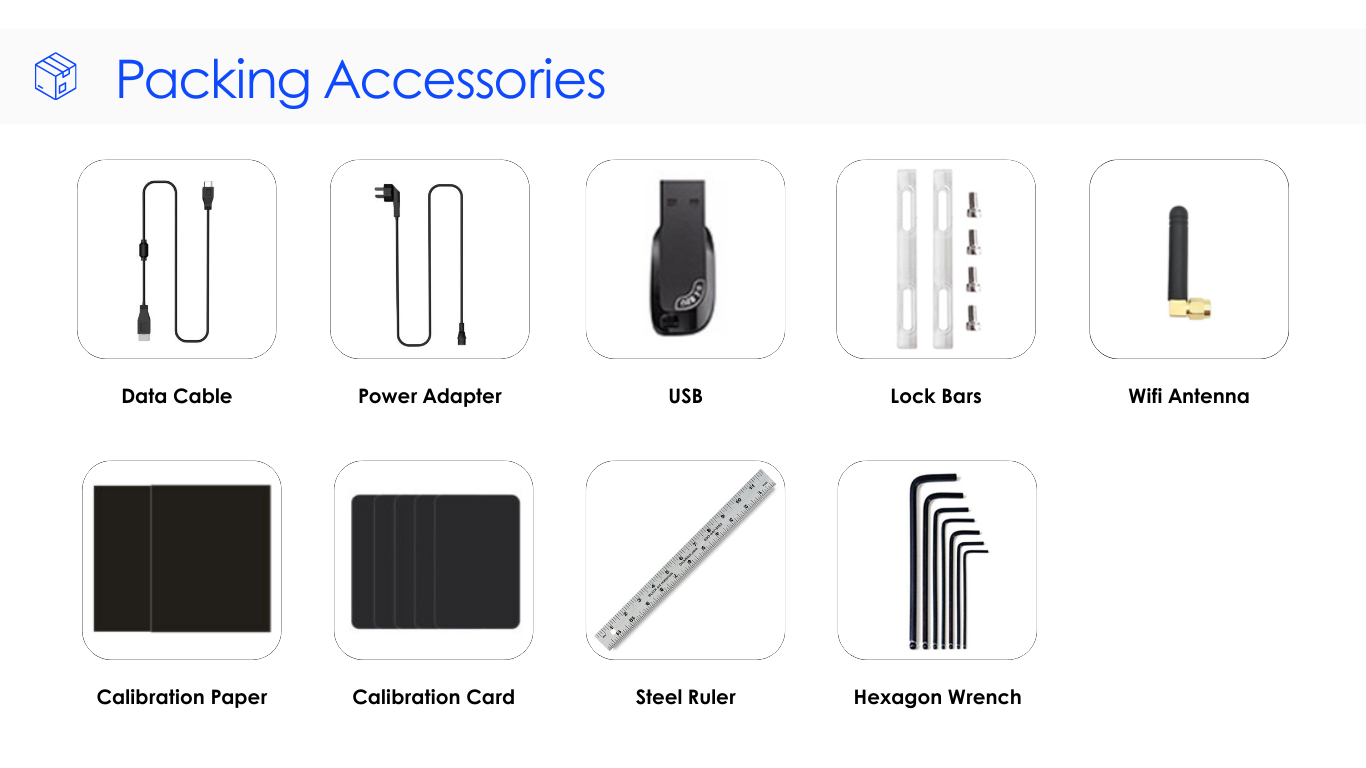

Packing Accessories

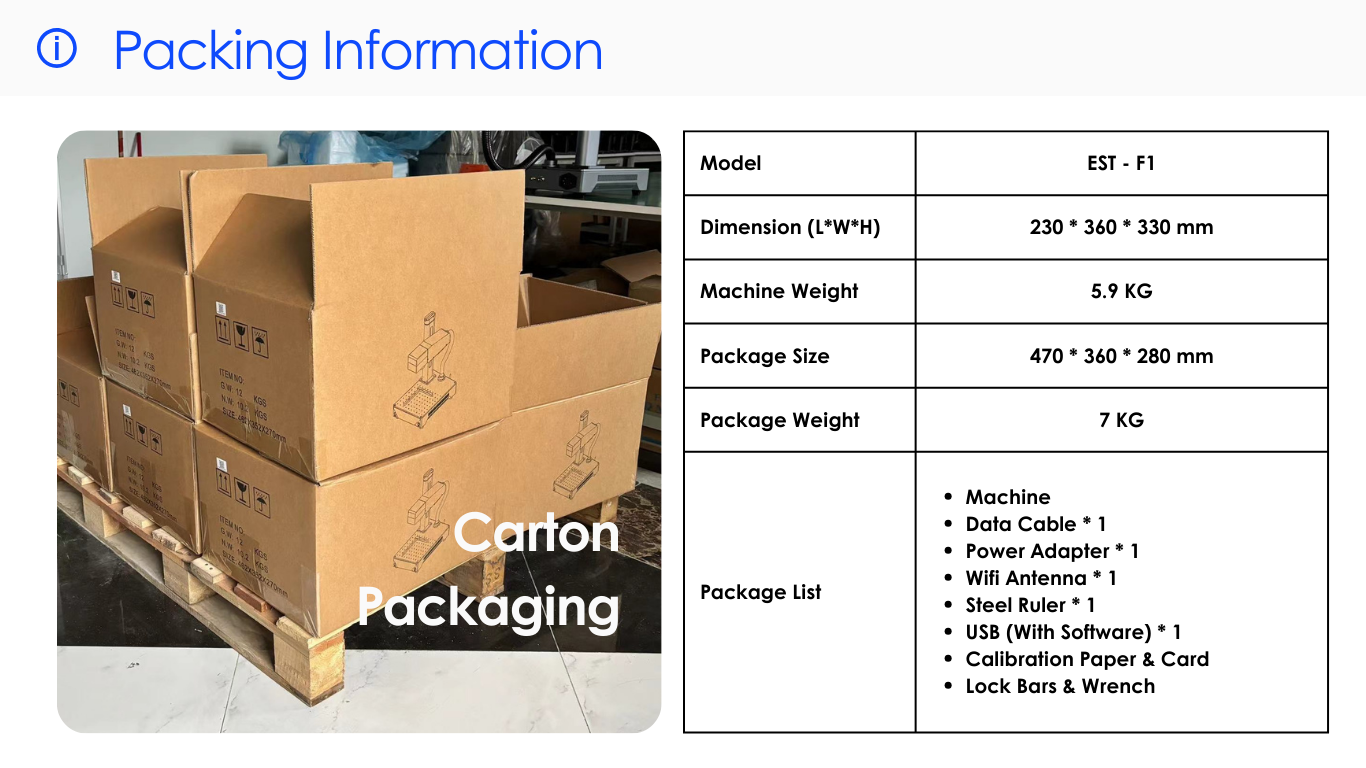

Packing Information
|
Model： |
EST -F1 |
|
Dimension(L*W*H)： |
230*360*330 mm |
|
Machine Weight： |
5.9 KG |
|
Package Size： |
470*360*280 mm |
|
Package Weight： |
7 KG |
|
Package list： |

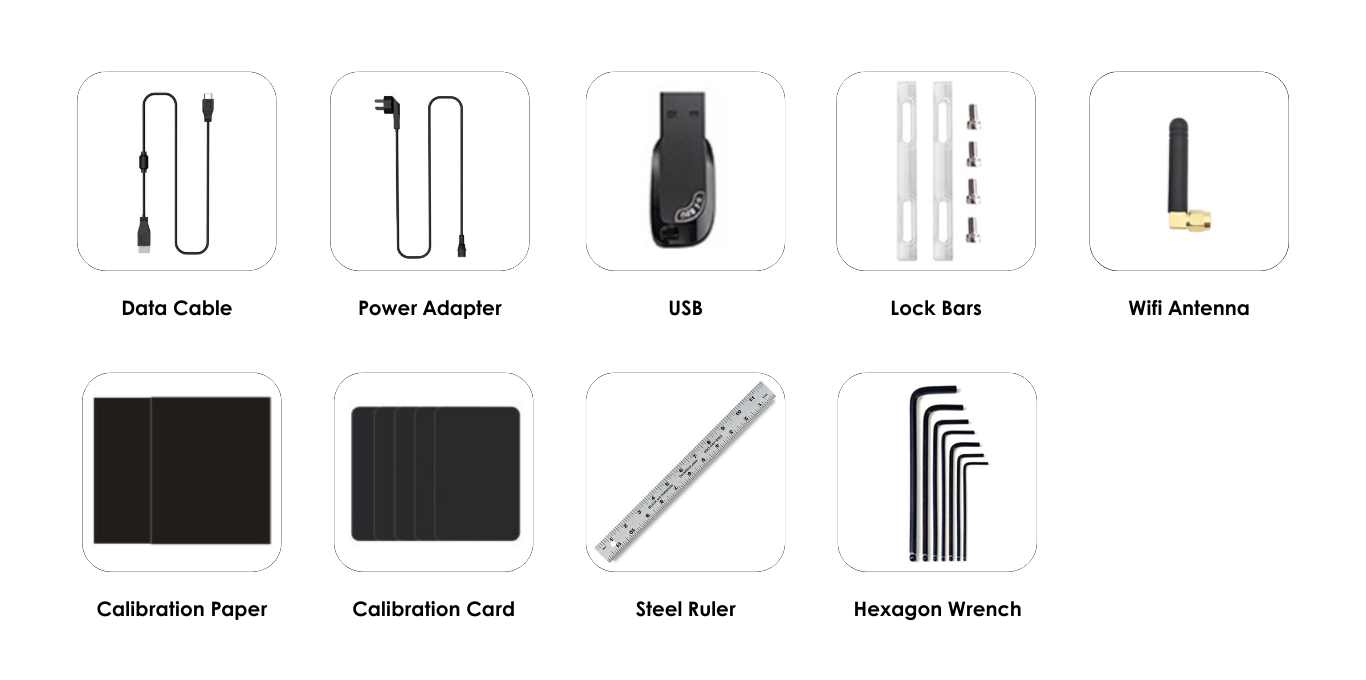

·Machine ·Data Cable*1 ·Power Adapter * ·Wifi Antenna * 1 ·Steel Ruler * 1 ·USB(With Software)*1 ·Calibration Paper & Card. ·Lock Bars & Wrench |

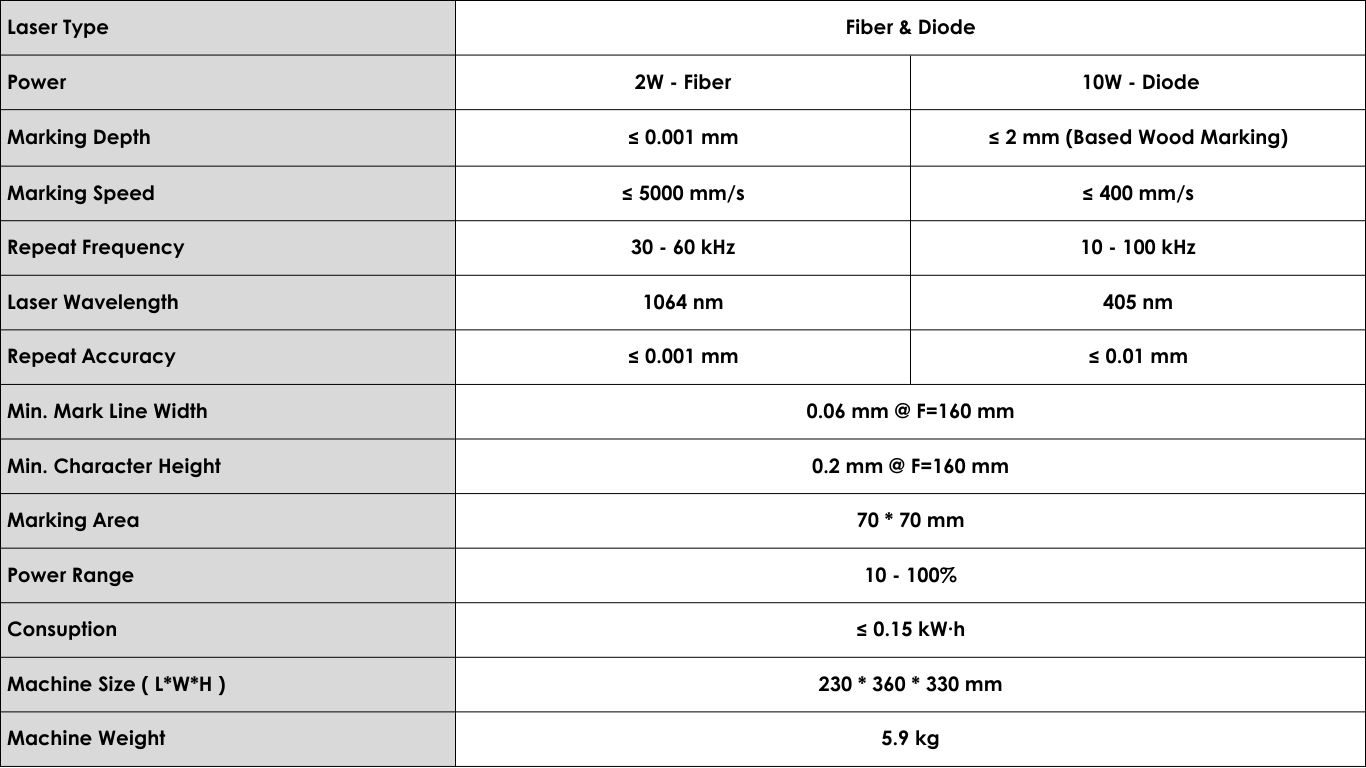

Parameters(* Differences in configuration)
Laser Type: Fiber & Diode
Power: 2W -Fiber / 10W - Diode
Marking Depth: ≤ 0.001 mm / ≤ 2 mm(Based Wood Marking)
Marking Speed: ≤5000 mm/s / ≤ 400 mm/s
Repeat Frequency: 30-60 kHz / 10 -100 kHz
Laser Wavelength: 1064 nm / 405 nm
Repeat Accuracy: ≤ 0.001 mm / ≤0.01 mm
Min. Mark Line Width: 0.06 mm @ F=160 mm
Min.Character Height: 0.2 mm @ F=160 mm
Marking Area: 70* 70 mm
Power Range: 10-100%
Consuption: ≤ 0.15 kW·h
Machine Size ( L*W*H ): 230*360*330 mm
Machine Weight: 5.9 kg

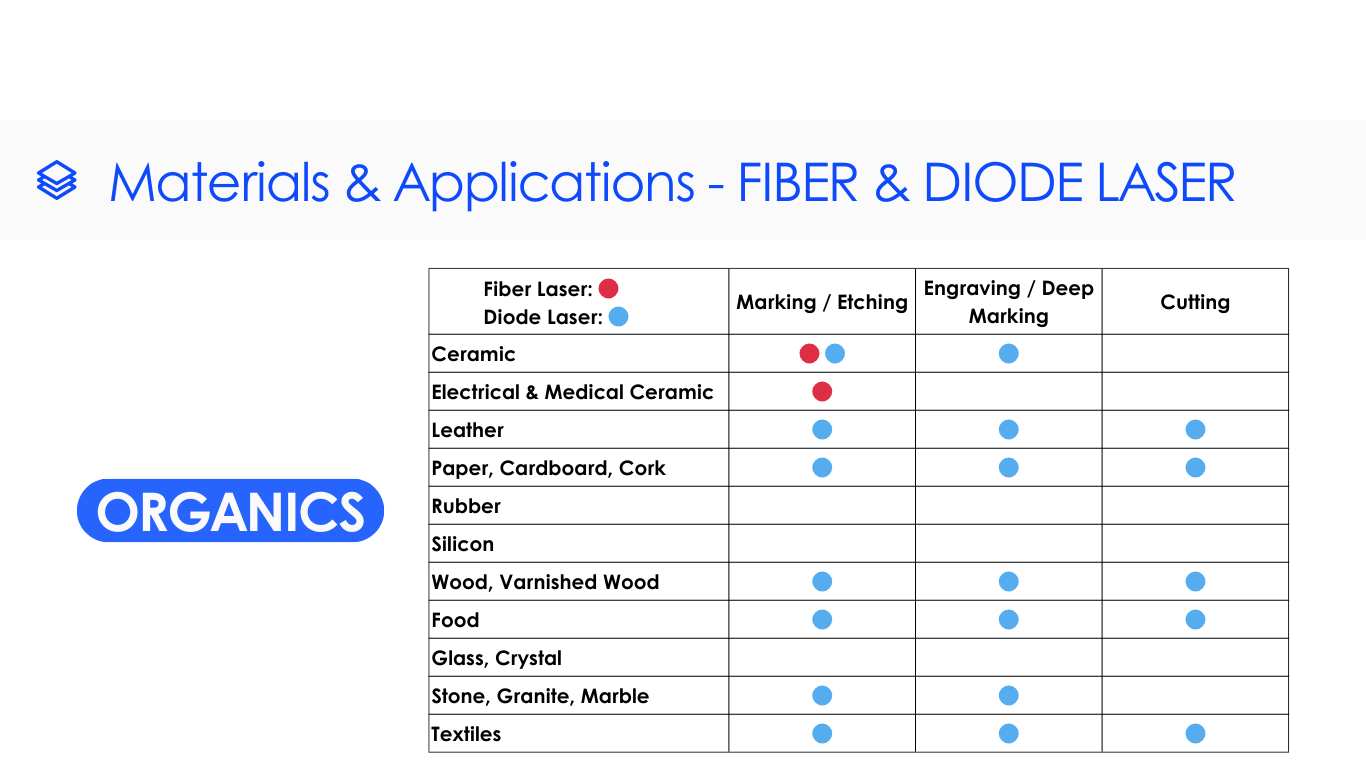

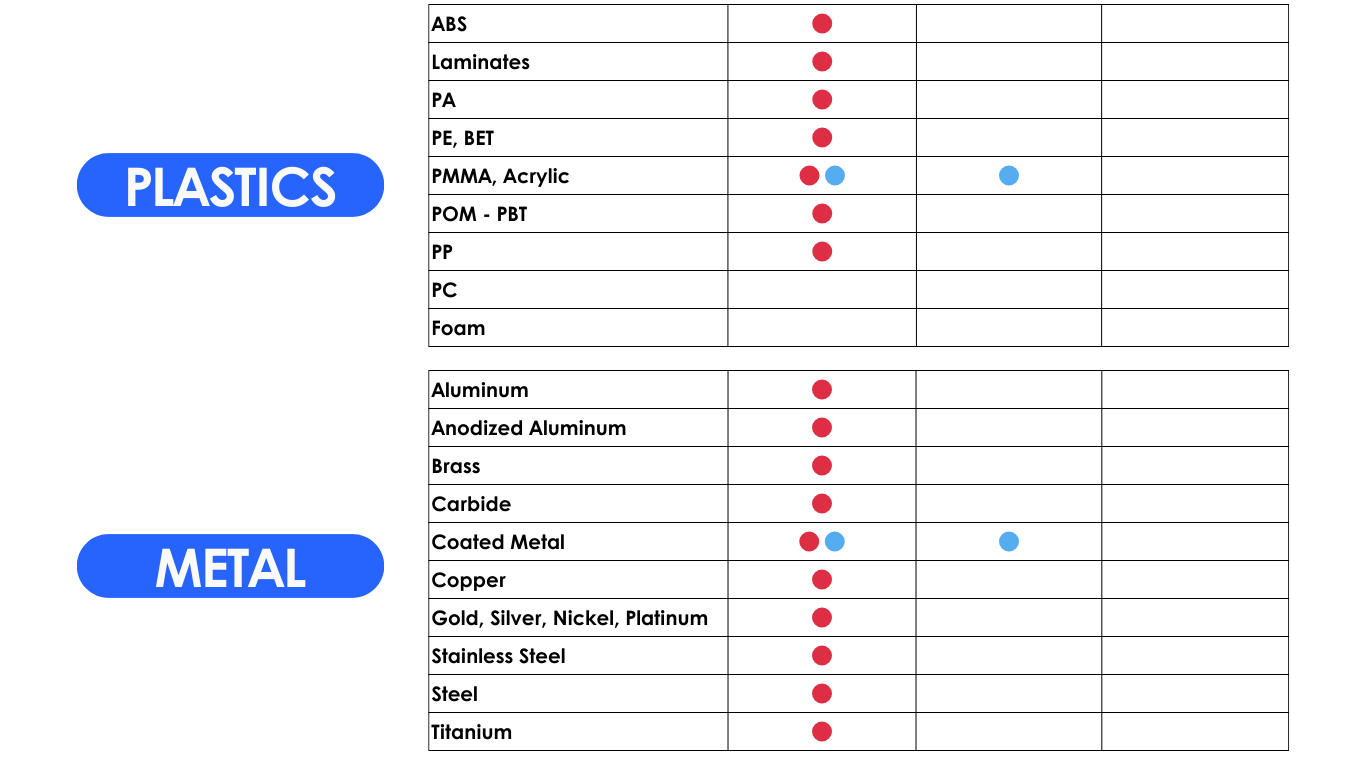

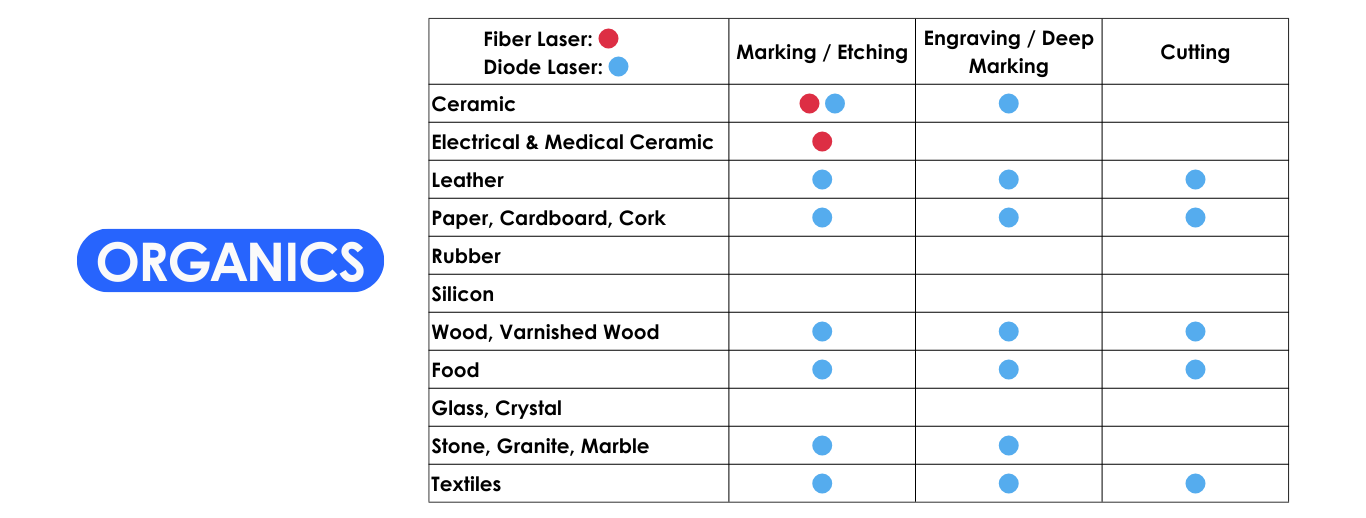

Materials & Applications - FIBER & DIODE LASER
